NHD 068-024-08 PI3 TT9030

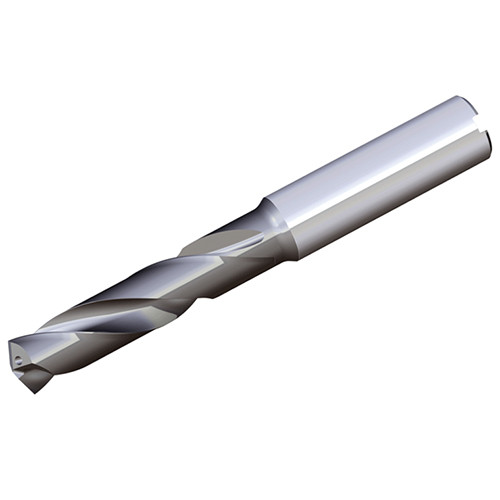

Solid carbide drills with coolant holes & drilling depth 3xD

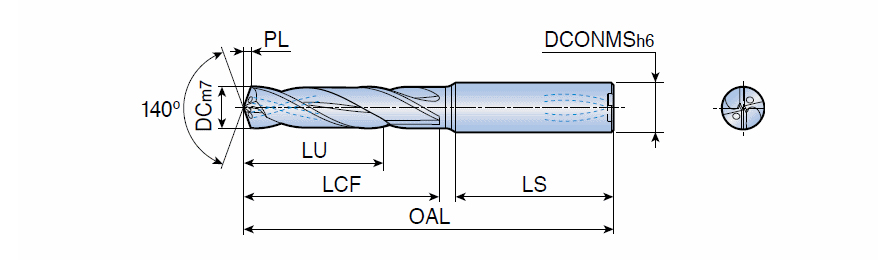

| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm | Grade | TT9030 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Usable Length (LU) | 24 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 79 mm |
| Point Length (PL) | 1.1 mm | Body Material | Carbide |
| Shank Length (LS) | 36 mm | Unit | M |
Product Features
| Family Description | Solid carbide drills with coolant holes & drilling depth 3xD | COO | S.KOREA |
Shipping Info
Weight per item
0.0420
