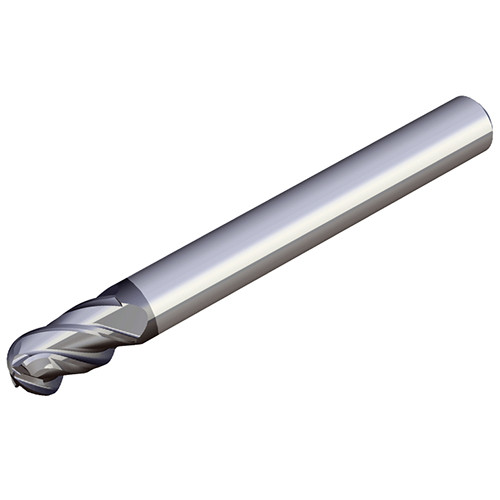

SBT 4200U TT5515
Solid carbide ball nose end mills for difficult-to-cut materials with unequal spacing of cutting edges & 4 flute

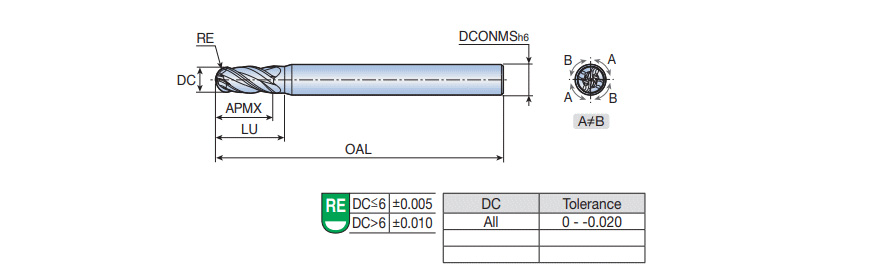

| Cutting Diameter (DC) | 20 mm | Usable Length (LU) | - |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 40 mm | Application | | Profiling | Solid Carbide End Mills | |
| Overall Length (OAL) | 150 mm | Corner Radius (RE) | 10 mm |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Solid carbide ball nose end mills for difficult-to-cut materials with unequal spacing of cutting edges & 4 flute | FamilyName | SBT 4...U |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.6160
Name
Ballnose End Mills
FamilyName
SBT 4...U
BrandName
Taegutec
