HSB 2080S 120 200 TT5505

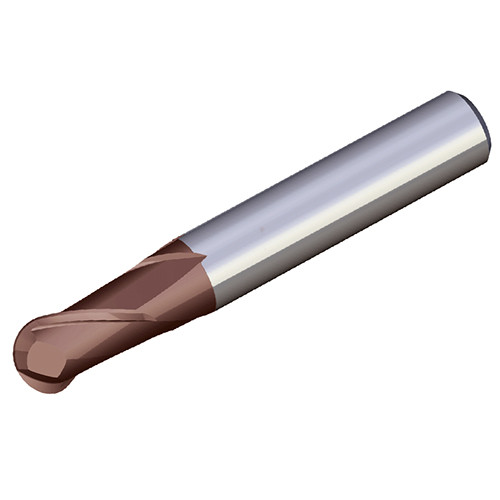

High precision solid carbide ball nose end mills of short type & 2 flute for high speed machining of hardened steel and pre-hardened steel

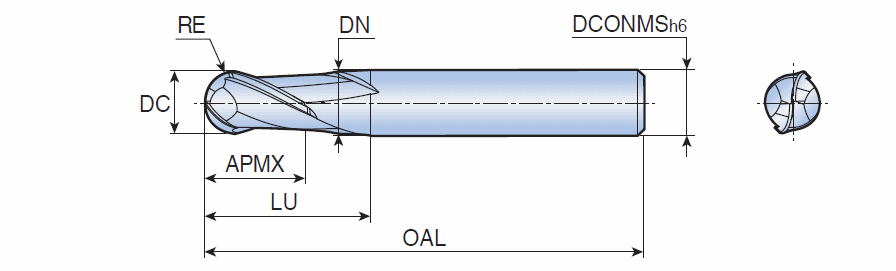

| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Profiling | Solid Carbide End Mills | |
| Depth of Cut Maximum (APMX) | 12 mm | Corner Radius (RE) | 4 mm |
| Overall Length (OAL) | 58 mm | Neck Diameter (DN) | 7.9 |
| Cutting Edge Material | Carbide | Grade | TT5505 |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
| Usable Length (LU) | 20 mm |
Product Features
| Family Description | High precision solid carbide ball nose end mills of short type & 2 flute for high speed machining of hardened steel and pre-hardened steel | FamilyName | HSB 2...S |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0410
Name
Ballnose End Mills
FamilyName
HSB 2...S
BrandName
Taegutec
