SBE 4200T TT5515
Solid carbide ball nose end mills with 4 flute & medium type for general application

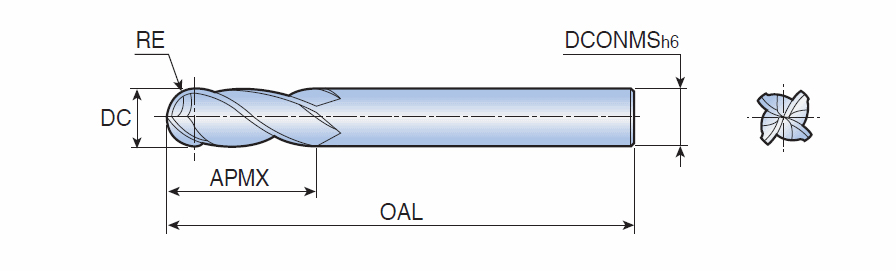

| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Profiling | Solid Carbide End Mills | |
| Depth of Cut Maximum (APMX) | 40 mm | Corner Radius (RE) | 10 mm |
| Overall Length (OAL) | 150 mm | Grade | TT5515 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiCrN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide ball nose end mills with 4 flute & medium type for general application | FamilyName | SBE 4...T |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.6195
Name
Ballnose End Mills
FamilyName
SBE 4...T
BrandName
Taegutec
