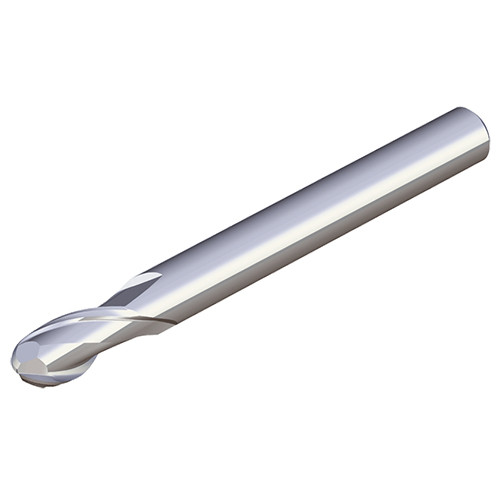

SBE 2030 UF10N
Solid carbide ball nose end mills with 2 flute & medium type for general application

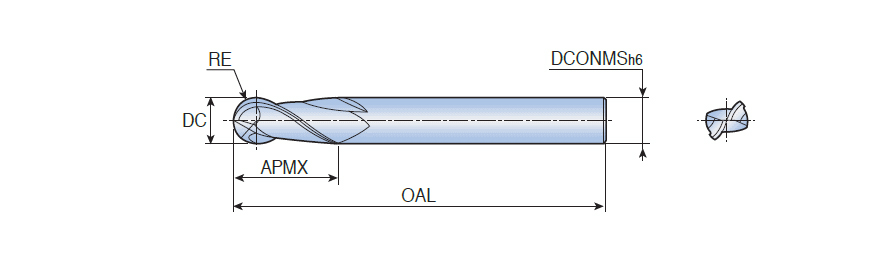

| Cutting Diameter (DC) | 3 mm | Applicable Material | | Steel | Stainless Steel | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Profiling | Solid Carbide End Mills | |
| Depth of Cut Maximum (APMX) | 8 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 70 mm | Grade | UF10N |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide ball nose end mills with 2 flute & medium type for general application | FamilyName | SBE 2___ |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0270
Name
Ballnose End Mills
FamilyName
SBE 2___
BrandName
Taegutec
