TNDH 2600-C26-TP

Name: TNDH 2600-C26-TP
Brand: MODURDRILL
SKU: TTK6314474
Price: 852.26 GBP
Availability: InStock

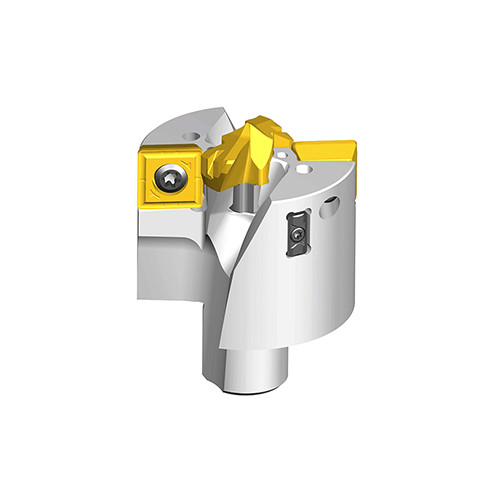

Modular large diameter drill heads with coolant holes and ground guide pad mounted on various length Modular drill holders

Item # TTK6314474

Brand: Taegutec

Mfr#: 6314474

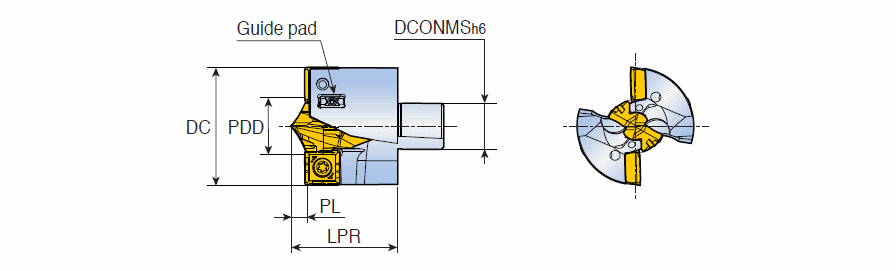

Cutting Diameter (DC)

26 mm

Master Insert Identification (MIID)

TCD-159-P-CO+

Application

| Drilling |

Connection Diameter Machine Side (DCONMS)

10.4 mm

Protruding Length (LPR)

24.9 mm

Pilot Drill Diameter (PDD)

15.9 mm

Insert Seat Size Code (SSC)

15 mm

Body Material

Steel

Measurement Type

Metric

Unit

Point Length (PL)

3.98 mm

Product Features

Family Description

Modular large diameter drill heads with coolant holes and ground guide pad mounted on various length Modular drill holders

COO

S.KOREA

Remarks

DCONMS: Holder connection size Guide pad is sold separately from drill body.

Weight per item

0.1350
