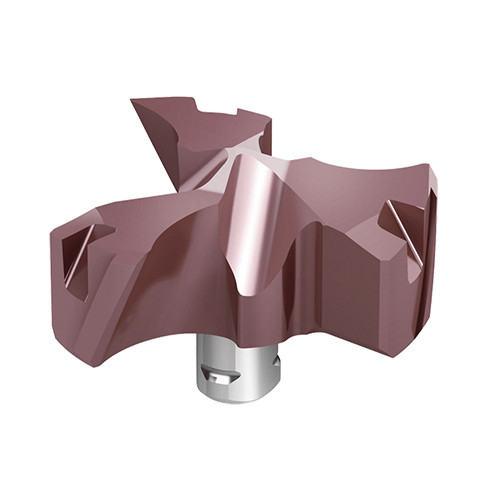

3ED-150-F TT5130
Exchangeable 3 flute drill heads for flat bottom hole machining with high productivity in steel and cast iron.
| Cutting Diameter (DC) | 15 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Point Length (PL) | 1.32 mm |
| Application | | Drilling | Hole Making Inserts | | Point Angle (SIG) | 133 |
| Grade | TT5130 | Coating | Multi TiAlN |
| Protruding Length (LPR) | 6.38 mm | Pilot Drill Diameter (PDD) | 4.16 mm |
| Insert Seat Size Code (SSC) | 15 | Corner Chamfer Width (CHW) | 0.4 mm |
| Functional Length (LF) | 5.06 mm | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Exchangeable 3 flute drill heads for flat bottom hole machining with high productivity in steel and cast iron. | COO | S.KOREA |
Shipping Info
Weight per item
0.0135
