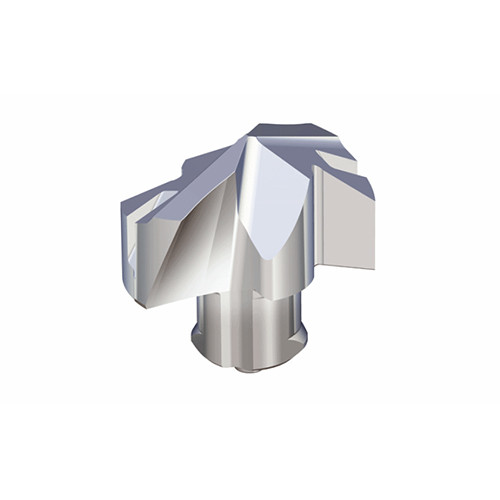

TCD-130-N UF10
Exchangeable drill heads for aluminum & non-ferrous of ISO N materials

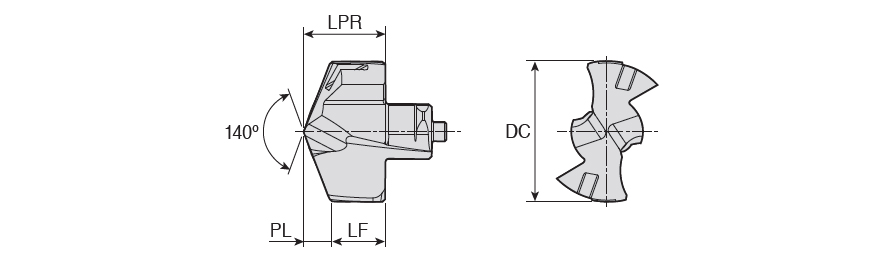

| Cutting Diameter (DC) | 13 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | | Drilling | Hole Making Inserts | | Point Length (PL) | 1.96 mm |
| Grade | UF10 | Point Angle (SIG) | 140 |
| Protruding Length (LPR) | 7.6 mm | Coating | Uncoated |
| Insert Seat Size Code (SSC) | 13 | Body Material | Carbide |
| Functional Length (LF) | 5.64 mm | Unit | M |
Product Features
| Family Description | Exchangeable drill heads for aluminum & non-ferrous of ISO N materials | COO | S.KOREA |
Shipping Info
Weight per item
0.0175
