TCD 180-189-25T2-8D

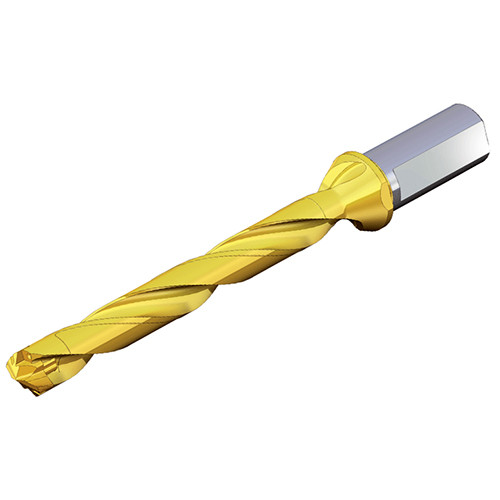

DRILLRUSH Head changeable drills with Weldon shank (8xD) and coolant holes

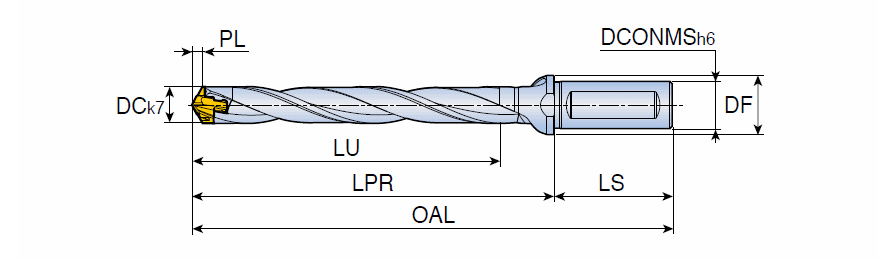

| Usable Length (LU) | 147 mm | Functional Length (LF) | 169.77 mm |
| Application | | Drilling | Tools for Swiss Machines | | Shank Length (LS) | 56 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 18 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 18.9 mm | Unit | M |
Product Features
| Family Description | DRILLRUSH Head changeable drills with Weldon shank (8xD) and coolant holes | COO | S.KOREA |
Shipping Info
Weight per item
0.4500
