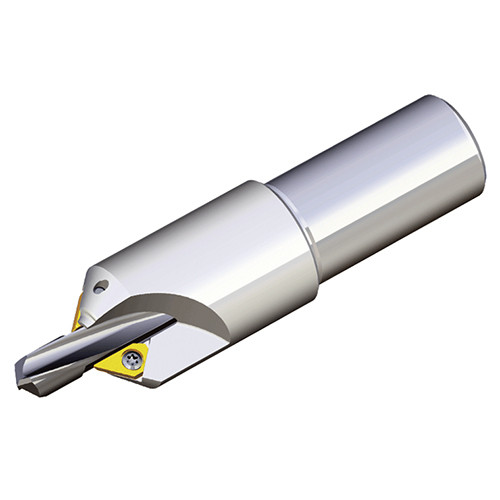

T-CHAMFER 130-32T1-09
Drill holders of chamfering and drilling together for solid carbide drills

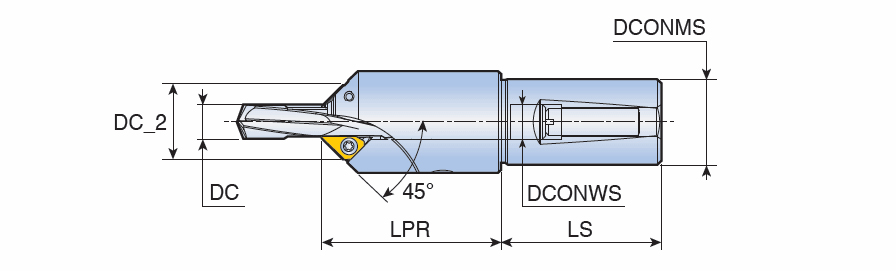

| Application | | Chamfering | | Cutting Diameter Maximum (DCX) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Length (LS) | 60 mm | Length Group | 0xD |
| Functional Length (LF) | 67.3 mm | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 12.1 mm | Unit | M |
Product Features
| Family Description | Drill holders of chamfering and drilling together for solid carbide drills | COO | ISRAEL |
Shipping Info
Weight per item
0.6800
