‎TOP 5150-20T2-05

Name: TOP 5150-20T2-05
Brand: TOPDRILL
SKU: TTK6181123
Price: 402.25 GBP
Availability: InStock

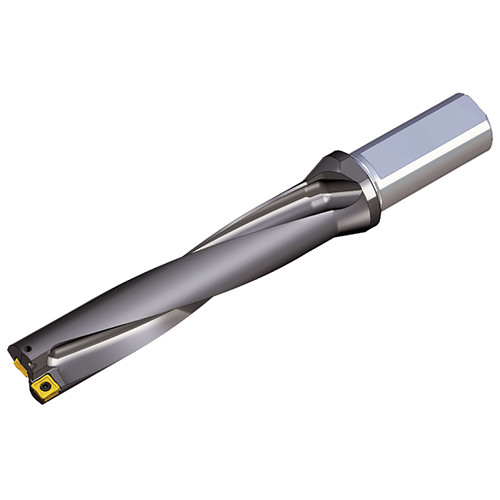

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Item # TTK6181123

Brand: Taegutec

Mfr#: 6181123

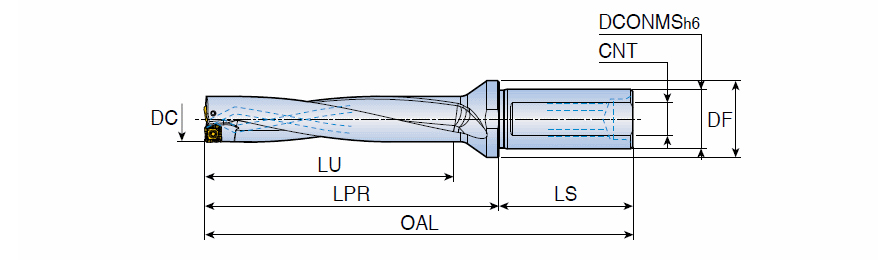

Cutting Diameter (DC)

15 mm

Overall Length (OAL)

144 mm

Usable Length (LU)

75 mm

Connection Thread Size (Ts)

M13X1.0

Application

| Drilling | Tools for Swiss Machines |

Measurement Type

Metric

Connection Diameter Machine Side (DCONMS)

20 mm

Length Group

5xD

Shank Length (LS)

50 mm

Body Material

Steel

Functional Length (LF)

94 mm

Unit

Product Features

Family Description

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

COO

S.KOREA

Weight per item

0.2200
