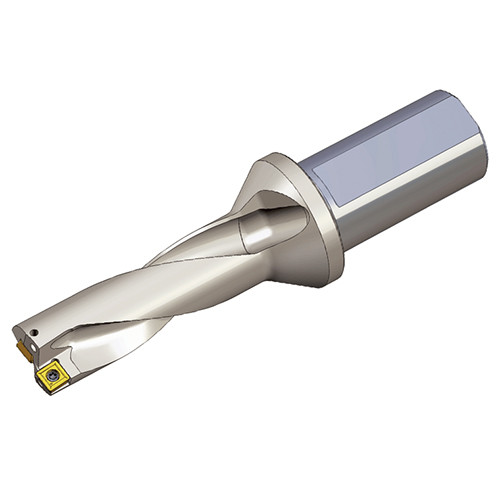

‎TDR 3145-20T2-05

Name: TDR 3145-20T2-05
Brand: TDRILL
SKU: TTK6180735
Price: 344.95 GBP
Availability: InStock

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

Item # TTK6180735

Brand: Taegutec

Mfr#: 6180735

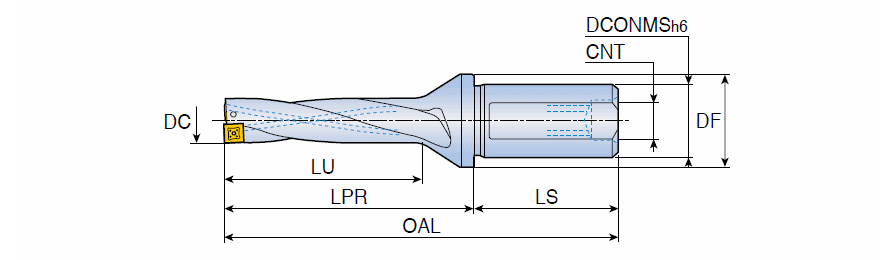

Cutting Diameter (DC)

14.5 mm

Overall Length (OAL)

114 mm

Usable Length (LU)

44 mm

Connection Thread Size (Ts)

M13X1.0

Application

| Drilling |

Measurement Type

Metric

Connection Diameter Machine Side (DCONMS)

20 mm

Length Group

3xD

Shank Length (LS)

50 mm

Body Material

Steel

Functional Length (LF)

64 mm

Unit

Product Features

Family Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

COO

S.KOREA

Weight per item

0.2170
