‎TDR 2300-40T2-09

Name: TDR 2300-40T2-09
Brand: TDRILL
SKU: TTK6180663
Price: 370.16 GBP
Availability: InStock

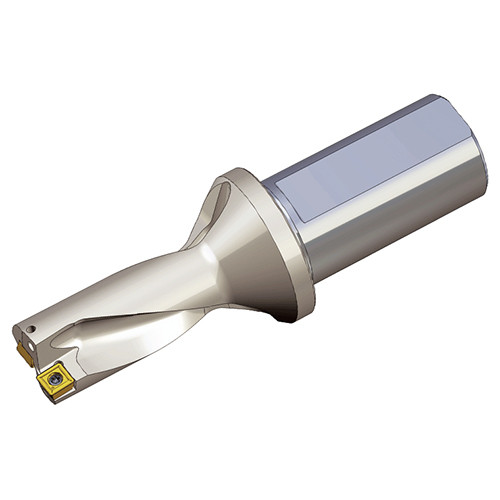

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Item # TTK6180663

Brand: Taegutec

Mfr#: 6180663

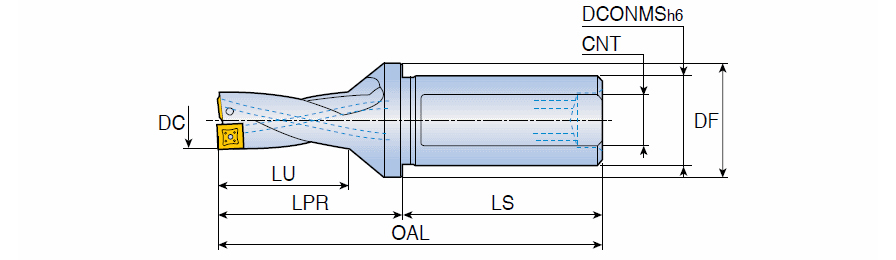

Cutting Diameter (DC)

30 mm

Overall Length (OAL)

161 mm

Usable Length (LU)

60 mm

Connection Thread Size (Ts)

Rc 1/4

Application

| Drilling |

Measurement Type

Metric

Connection Diameter Machine Side (DCONMS)

40 mm

Length Group

2xD

Shank Length (LS)

70 mm

Body Material

Steel

Functional Length (LF)

91 mm

Unit

Product Features

Family Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

COO

S.KOREA

Weight per item

1.1626
