‎TOP 4145-20T2-05

Name: TOP 4145-20T2-05
Brand: TOPDRILL
SKU: TTK3203801
Price: 369.01 GBP
Availability: InStock

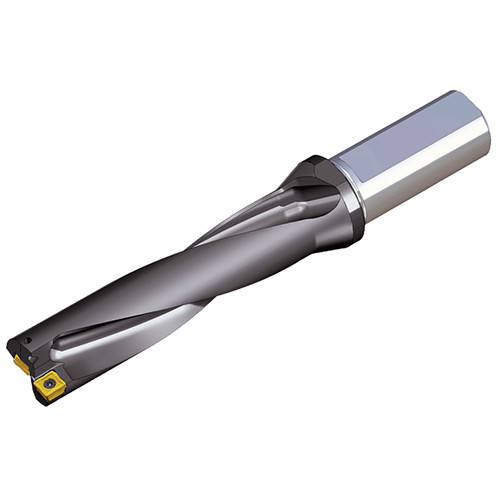

Indexable drills with unique square inserts & coolant holes, drilling depth 4xD

Item # TTK3203801

Brand: Taegutec

Mfr#: 3203801

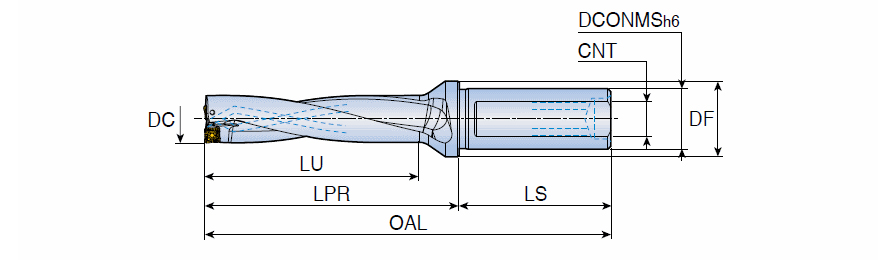

Cutting Diameter (DC)

14.5 mm

Overall Length (OAL)

129 mm

Usable Length (LU)

60 mm

Connection Thread Size (Ts)

M13X1.0

Application

| Drilling | Tools for Swiss Machines |

Measurement Type

Metric

Connection Diameter Machine Side (DCONMS)

20 mm

Length Group

4xD

Shank Length (LS)

50 mm

Body Material

Steel

Functional Length (LF)

79 mm

Unit

Product Features

Family Description

Indexable drills with unique square inserts & coolant holes, drilling depth 4xD

COO

S.KOREA

Weight per item

0.2000
