TDR 2574-80-50T2-12CA-T
Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 2.5xD

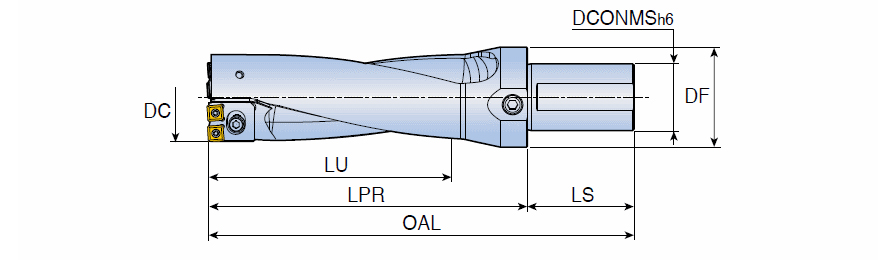

| Usable Length (LU) | 200 mm | Cutting Diameter Minimum (DCN) | 74 mm |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Shank Length (LS) | 80 mm | Length Group | 2xD |
| Functional Length (LF) | 250 mm | Body Material | Steel |
| Overall Length (OAL) | 330 mm | Unit | M |
Product Features
| Family Description | Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 2.5xD | COO | S.KOREA |
Shipping Info
Weight per item
5.9000
