‎TDR 5160-25T2-06

Name: TDR 5160-25T2-06
Brand: TDRILL
SKU: TTK3201418
Price: 434.34 GBP
Availability: InStock

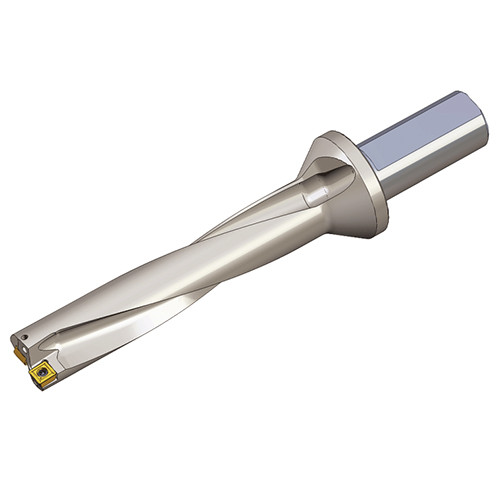

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

Item # TTK3201418

Brand: Taegutec

Mfr#: 3201418

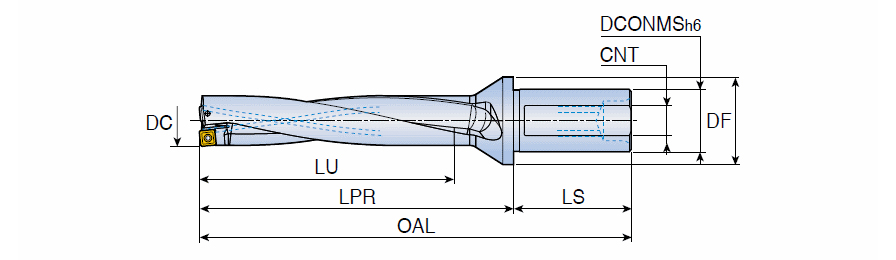

Cutting Diameter (DC)

16 mm

Overall Length (OAL)

156 mm

Usable Length (LU)

80 mm

Connection Thread Size (Ts)

M16X1.5

Application

| Drilling |

Measurement Type

Metric

Connection Diameter Machine Side (DCONMS)

25 mm

Length Group

5xD

Shank Length (LS)

56 mm

Body Material

Steel

Functional Length (LF)

100 mm

Unit

Product Features

Family Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

COO

S.KOREA

Weight per item

0.3630
