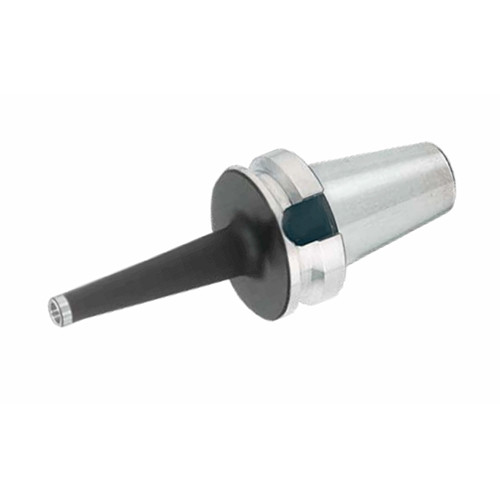

BT40 ODP 12X106
T-FLEXTEC threaded adaptation tools with BT MAS-403 form ADB taper shanks

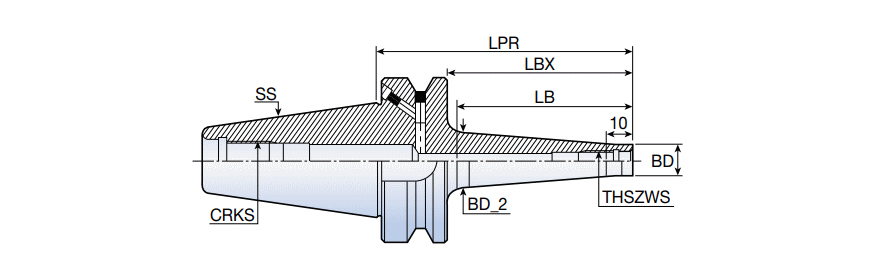

| Body Diameter (BD) | 21 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length Maximum (LBX) | 106 mm | Shank Size (SS) | 40 mm |
| Nose Length | 70 mm | Thread Size | M12 |
| Application | | T FLEXTEC | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | T-FLEXTEC threaded adaptation tools with BT MAS-403 form ADB taper shanks | FamilyName | BT-ODP |
| Remarks | If the "B type" option is required, the plug screw must be removed from the flange cooling hole (Use a 2mm hex key) | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
1.2900
Name
End Mill Holders
FamilyName
BT-ODP
BrandName
Taegutec
