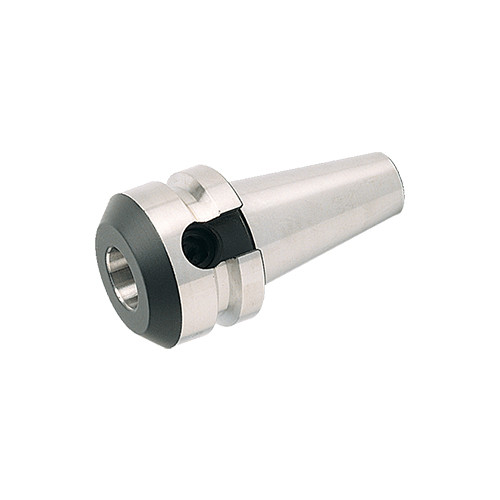

BT40 EM 25X45
Short Weldon DIN6359 / DIN 1835 form B end mill holders with BT MAS-403 form AD taper shanks

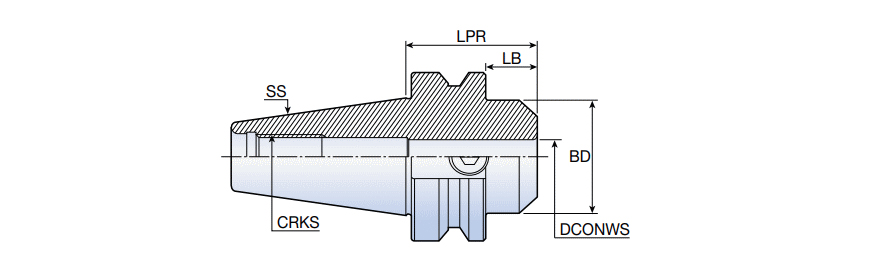

| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 63 mm | Shank Size (SS) | 40 mm |
| Body Length Maximum (LBX) | 45 mm | Body Material | Steel |
| Nose Length | - | Unit | M |
| Application | | BT MAS 403 | |
Product Features
| Family Description | Short Weldon DIN6359 / DIN 1835 form B end mill holders with BT MAS-403 form AD taper shanks | FamilyName | BT-EM (Short Endmill Holer) |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | TURKEY |
Shipping Info
Weight per item
1.1775
Name
End Mill Holders
FamilyName
BT-EM (Short Endmill Holer)
BrandName
Taegutec
