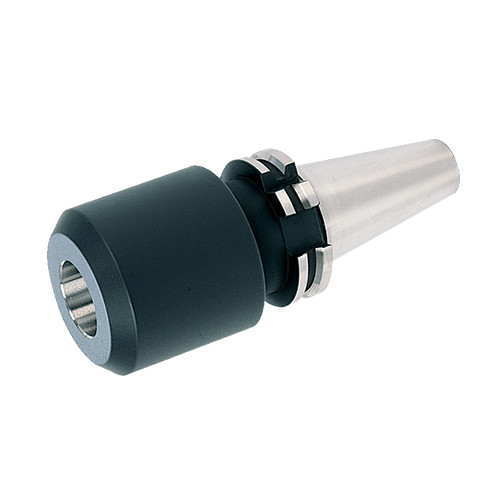

DIN69871 50 EM 32X100
DIN6359 / DIN 1835 form B Weldon end mill holders with DIN 69871 form AD/B taper shanks

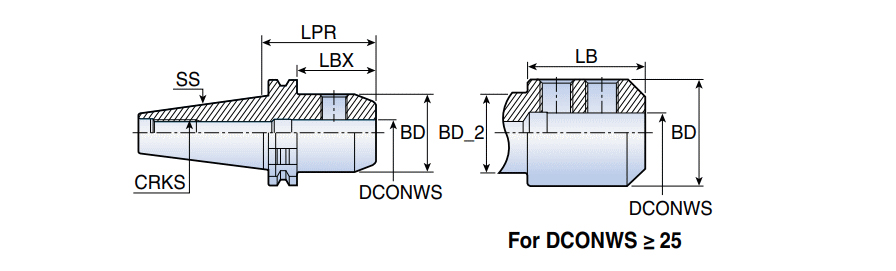

| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Diameter (BD) | 72 mm | Shank Size (SS) | 50 mm |
| Body Length Maximum (LBX) | 100 mm | Body Material | Steel |
| Nose Length | 80.9 mm | Unit | M |

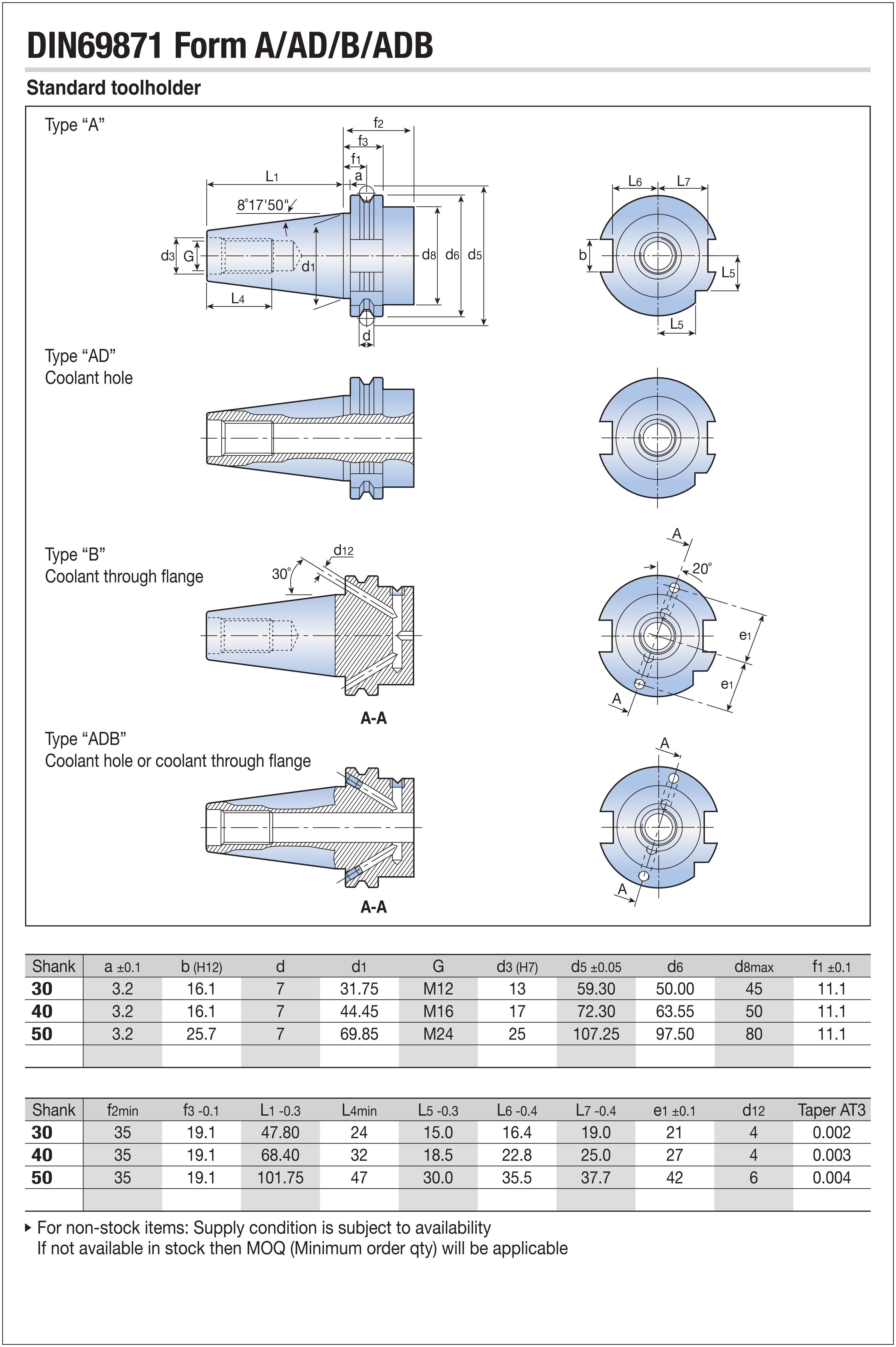

| Application | | DIN 69871 | |
Product Features
| Family Description | DIN6359 / DIN 1835 form B Weldon end mill holders with DIN 69871 form AD/B taper shanks | FamilyName | DIN69871-EM (Endmill Holder) |
| Remarks | Add B for coolant through flange except DIN69871 30 | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
4.7000
Name
End Mill Holders
FamilyName
DIN69871-EM (Endmill Holder)
BrandName
Taegutec
