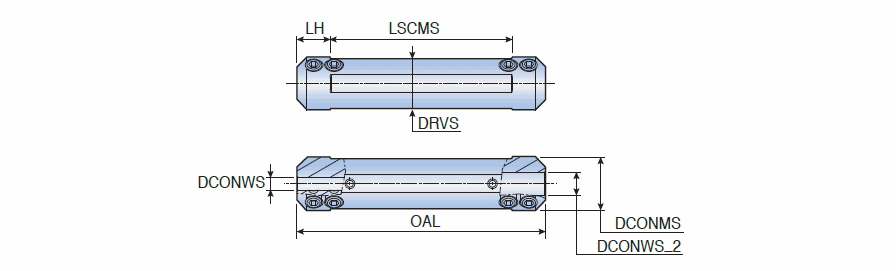

| Connection Diameter Machine Side (DCONMS) | 22 mm | Shank Type | CYL |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Application | | Mini carbide bars | Tools for Swiss Machines | |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 90 mm | Body Material | Steel |
| Head Length (LH) | 10 mm | Unit | M |
Product Features
| Family Description | Sleeves for TOPMICRO mini carbide bars of 4 & 7 mm | FamilyName | MINSL (SLEEVE) |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.2600
Name

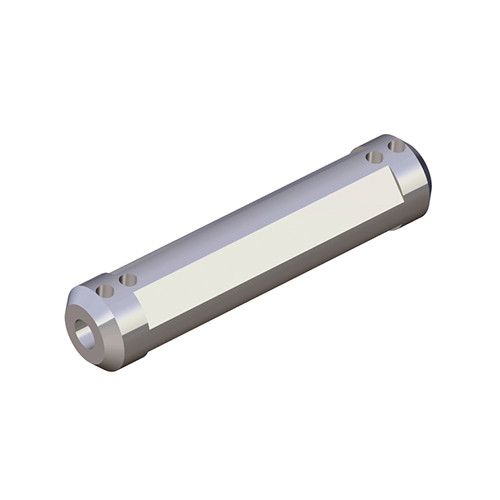

Milling Chuck Sleeves
FamilyName
MINSL (SLEEVE)
BrandName
Taegutec
