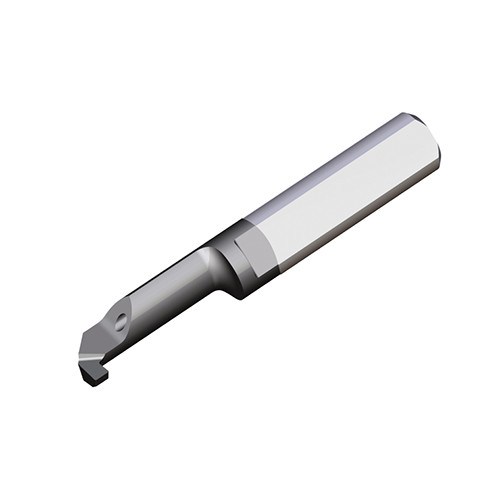

MINGR07-090150D068 TT9030
MING: Mini carbide bars for grooving and turning in Dmin = 2.0 - 6.8 mm

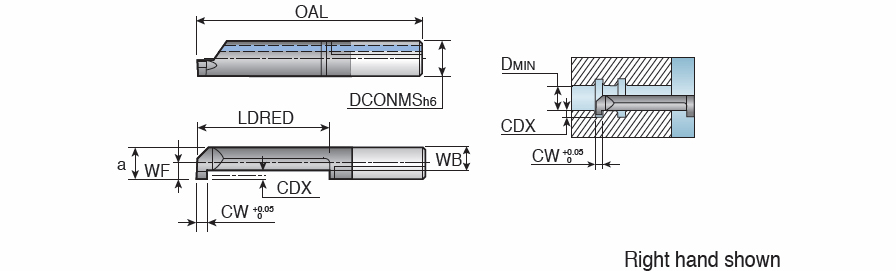

| Connection Diameter Machine Side (DCONMS) | 7 mm | Cutting Depth Maximum (CDX) | 2.5 mm |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Functional Width (WF) | 2.7 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | TT9030 | Measurement Type | Metric |
| Application | | Int. Groove & Turn | Int. Grooving | Mini carbide bars | Tools for Swiss Machines | | Overall Length (OAL) | 25 mm |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Width (CW) | 1.5 mm |
| Front End Width (a) | 1.5 mm | Unit | M |
Product Features
| Family Description | MING: Mini carbide bars for grooving and turning in Dmin = 2.0 - 6.8 mm | FamilyName | MING R/L 04/07 |
| Remarks | The corner radius is less than 0.1mm | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0122
Name
Solid Boring Bars
FamilyName
MING R/L 04/07
BrandName
Taegutec
