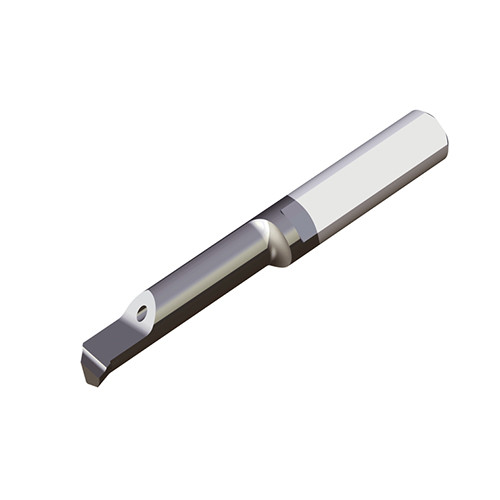

MINTL07-140015D050 TT9030
MINT: Mini carbide bars for internal turning and chamfering in Dmin = 5.0 - 7.0 mm
| Connection Diameter Machine Side (DCONMS) | 7 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 5 mm | Cutting Depth Maximum (CDX) | 0.5 mm |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 0.9 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | TT9030 | Cutting Edge Material | Carbide |
| Application | | Int. Turn.& Chamfering | Mini carbide bars | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Overall Length (OAL) | 30 mm |
| Front End Width (a) | 4.4 mm | Unit | M |
Product Features
| Family Description | MINT: Mini carbide bars for internal turning and chamfering in Dmin = 5.0 - 7.0 mm | FamilyName | MINT R/L 07 |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0130
Name
Solid Boring Bars
FamilyName
MINT R/L 07
BrandName
Taegutec
