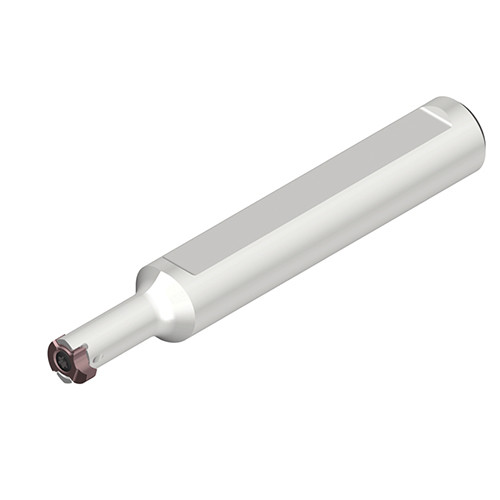

TMIHN 12-16-8

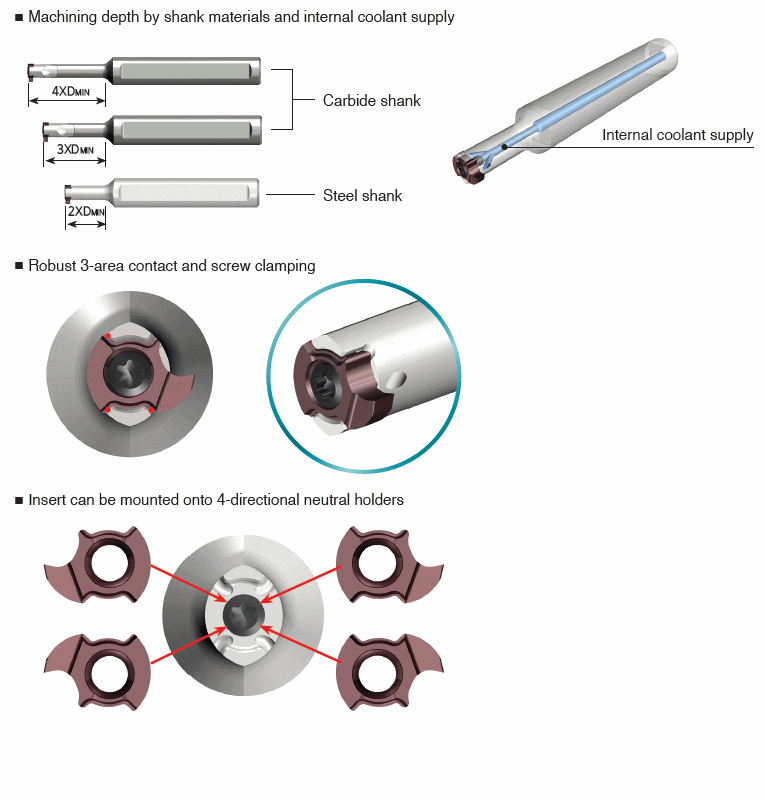

Small size boring bar with coolant holes for internal shallow grooving on small diameter Dmin=10mm with TMIS 8 inserts
| Connection Diameter Machine Side (DCONMS) | 12 mm | Functional Width (WF) | 4.7 mm |
| Minimum Bore Diameter (DMIN) | 10 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 16 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Overall Length (OAL) | 80 mm |
| Application | | Int. Groove & Turn | Int. Grooving | Tools for Swiss Machines | | Unit | M |
Product Features
| Family Description | Small size boring bar with coolant holes for internal shallow grooving on small diameter Dmin=10mm with TMIS 8 inserts | FamilyName | TMIHN |
| Remarks | CDX: Refer to insert dimension | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0630
Name
Solid Boring Bars
FamilyName
TMIHN
BrandName
Taegutec
