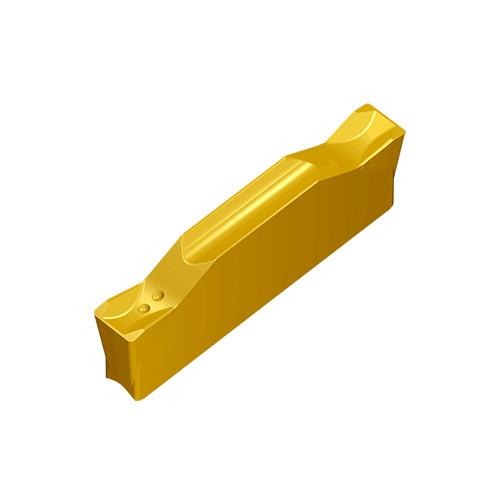

RDC 2 TT8020
Double-ended C-type inserts for general machining of parting on small dia. solid bar and shallow grooving with strong cutting edge

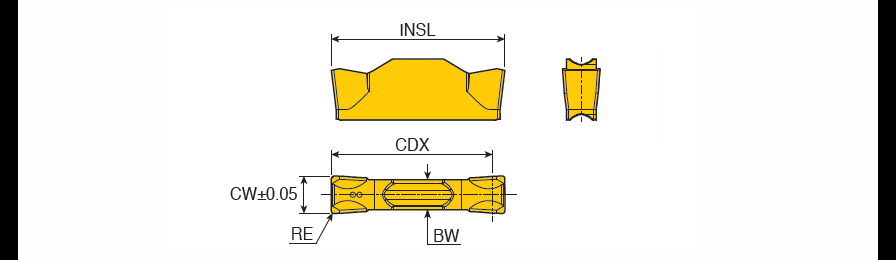

| Cutting Width (CW) | 2 mm | Grade | TT8020 |
| Corner Radius (RE) | 0.2 mm | Application | | Ext. Grooving | Inserts | Parting | |
| Overall Length (OAL) | 14 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 13 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | Double-ended C-type inserts for general machining of parting on small dia. solid bar and shallow grooving with strong cutting edge | FamilyName | RDC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0027
Name
Parting Off Indexable Inserts
FamilyName
RDC
BrandName
Taegutec
