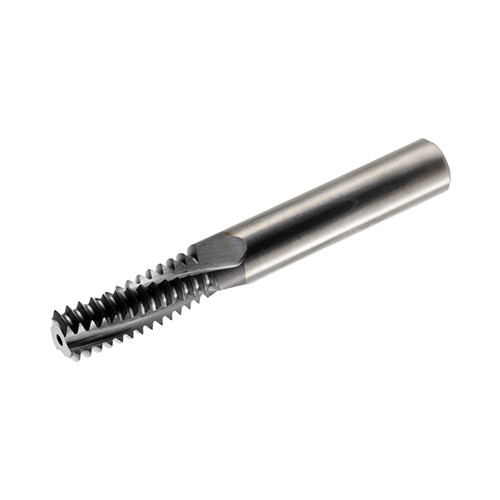

MTECB 1616E26 14W TT9030

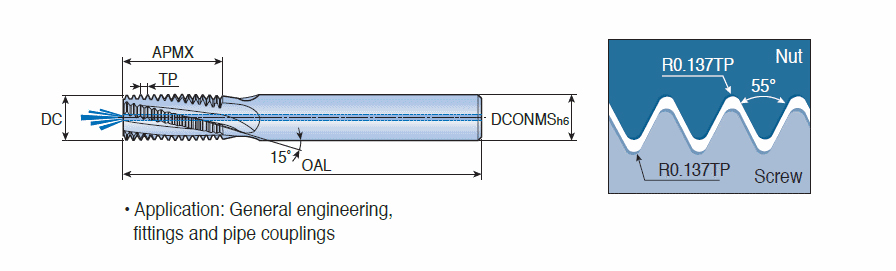

Solid carbide threading end mills with internal coolant holes for internal or external BSP thread profiles
| Thread Size | G1/2-7/8 | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 11 | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 16 mm | Usable Length (LU) | 26.3 mm |
| Overall Length (OAL) | 105 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Grade | TT9030 |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Solid carbide threading end mills with internal coolant holes for internal or external BSP thread profiles | COO | ISRAEL |
Shipping Info
Weight per item
0.0042
