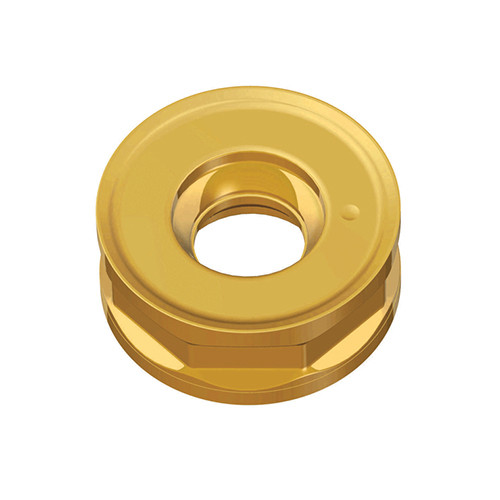

RNMU 1205-ML TT8525B
Double-sided economical round inserts for general milling applications with max. 8 index per side (total 16 corners) when the depth of cut is limited.
| Applicable Material | | Steel | Stainless Steel | | Grade | TT8525B |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth |

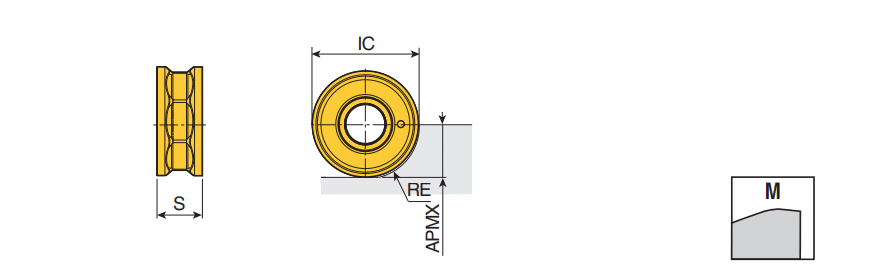

| Corner Radius (RE) | 6 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 12 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5 mm | Body Material | Carbide |
| Coating | MTCN-Al2O3-TiN | Unit | M |
Product Features
| Family Description | Double-sided economical round inserts for general milling applications with max. 8 index per side (total 16 corners) when the depth of cut is limited. | FamilyName | RNMU 10/12/16-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0065
Name
Milling Indexable Inserts
FamilyName
RNMU 10/12/16-ML
BrandName
Taegutec
