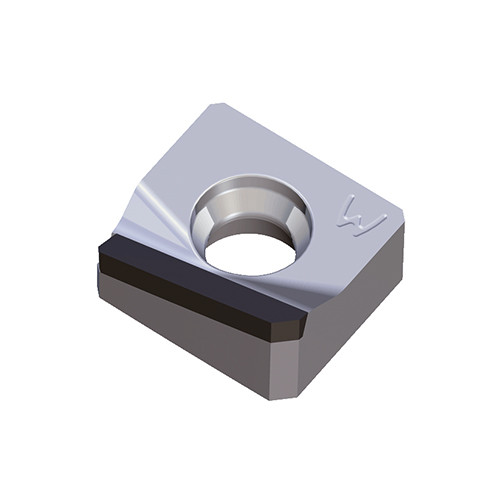

4WHU 1207-PCD TD810
Precisely ground PCD wiper inserts for super-finishing of aluminum & nonferrous materials

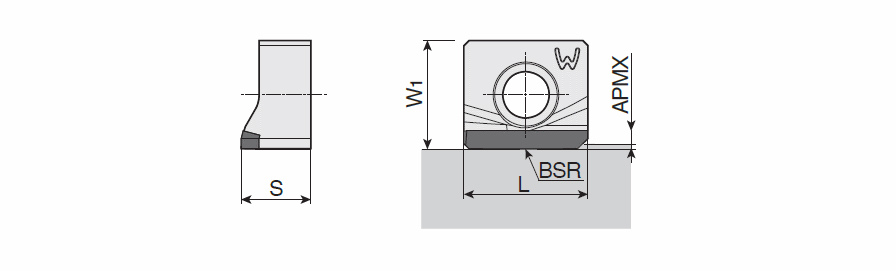

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Inserts | | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 6.74 mm | Measurement Type | Metric |
| Coating | PCD | Body Material | Carbide |
| Grade | TD810 | Unit | M |
Product Features
| Family Description | Precisely ground PCD wiper inserts for super-finishing of aluminum & nonferrous materials | FamilyName | 4WHU 12-PCD |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0230
Name
Milling Indexable Inserts
FamilyName
4WHU 12-PCD
BrandName
Taegutec
