RPGN 1204 FL-E04 TC3020

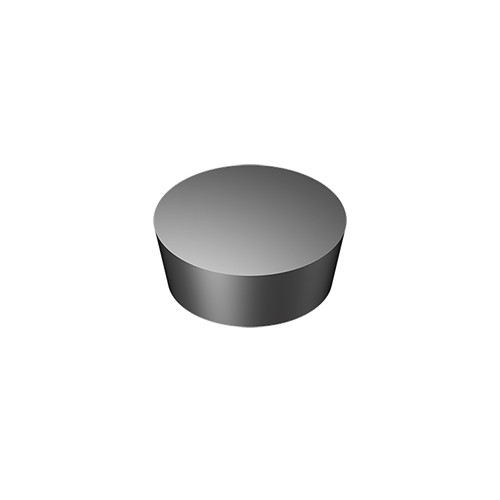

Flat type positive round ceramic inserts for high speed milling of super alloys with low cutting force

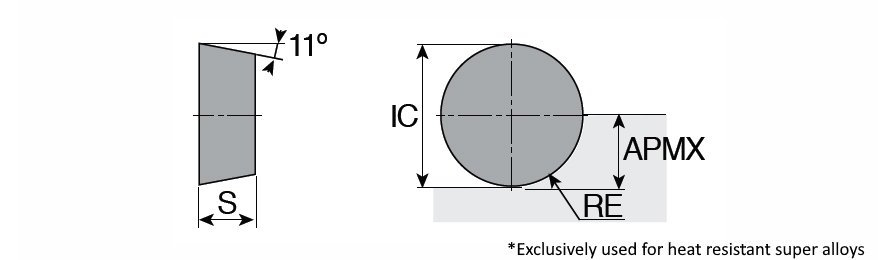

| Applicable Material | | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 6.35 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 2 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 4.76 mm | Unit | M |
| Grade | TC3020 |
Product Features
| Family Description | Flat type positive round ceramic inserts for high speed milling of super alloys with low cutting force | FamilyName | RPGN 1204 FL |
| Remarks | Edge preparations E: 0.02 0.03mm Honing E04: 0.04 0.05mm Honing T6: 0.1mm × 20~ Land | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0030
Name
Milling Indexable Inserts
FamilyName
RPGN 1204 FL
BrandName
Taegutec
