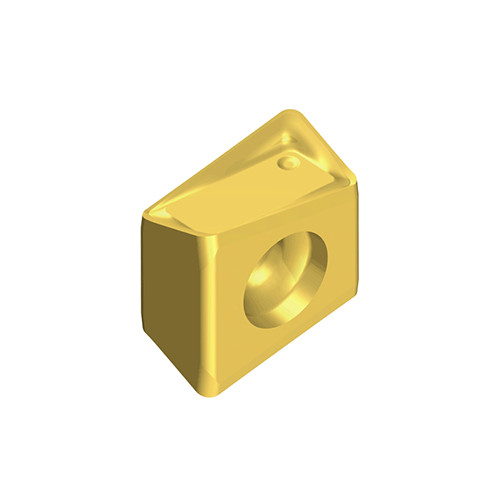

LXHU 05-04-ML TT9080
Tangential inserts of 4 cutting edges for slot milling
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Bottom Shouldering | Inserts | Side Slotting | T Slotting | | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |

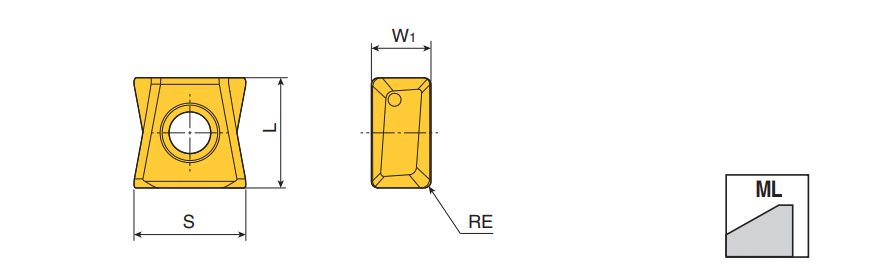

| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 5 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
Product Features
| Family Description | Tangential inserts of 4 cutting edges for slot milling | FamilyName | LXHU 05-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0018
Name
Milling Indexable Inserts
FamilyName
LXHU 05-ML
BrandName
Taegutec
