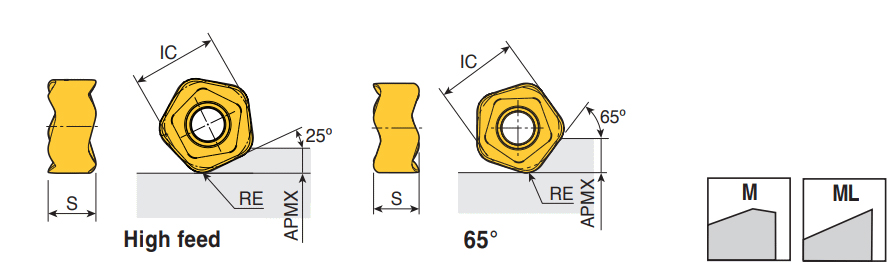

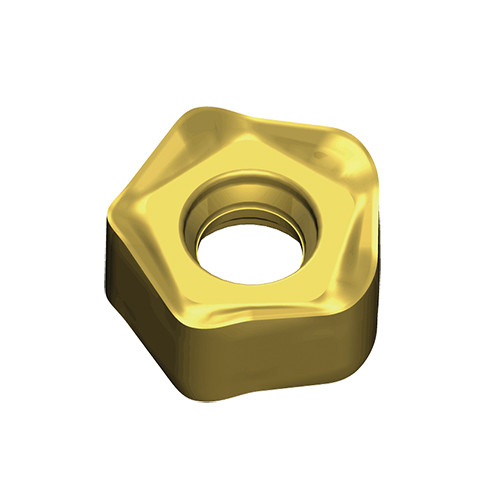

PTKU 0503R-M TT2510
High positive double-sided inserts with economical 10 cutting edges for 65° Face mills and High Feed mills
| Applicable Material | | Steel | Hard Materials | | Grade | TT2510 |
| Application | | Chamfer & Serration | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Corner Radius (RE) | 1.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Inscribed Circle Diameter (IC) | 7.1 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.84 mm | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
Product Features

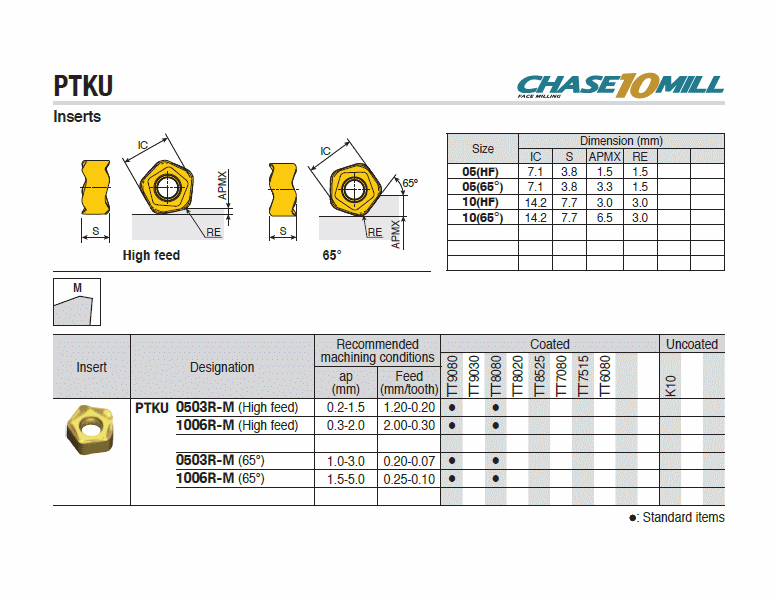

| Family Description | High positive double-sided inserts with economical 10 cutting edges for 65° Face mills and High Feed mills | FamilyName | PTKU 05-M/ML |
| Remarks | For recommended machining condition, please click on "More Info" | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0130
Name
Milling Indexable Inserts
FamilyName
PTKU 05-M/ML
BrandName
Taegutec
