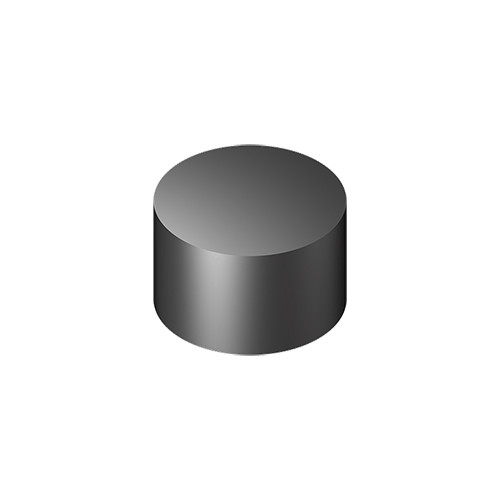

RNGN 1207 FL-E04 TC3020
Flat type negative round ceramic inserts for high speed milling of super alloys
| Applicable Material | | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Cutting Edge Material | Ceramic |

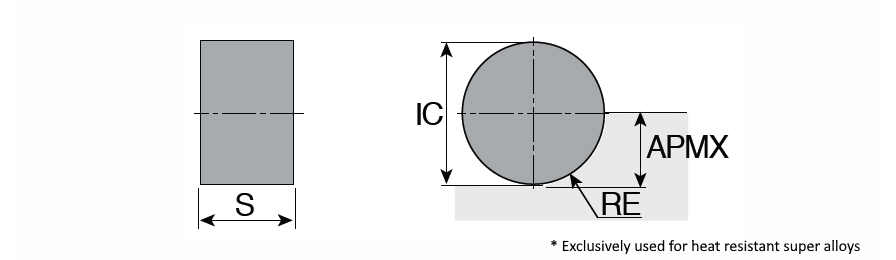

| Corner Radius (RE) | 6.35 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 3 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 7.94 mm | Unit | M |
| Grade | TC3020 |
Product Features
| Family Description | Flat type negative round ceramic inserts for high speed milling of super alloys | FamilyName | RNGN 1207 FL |
| Remarks | Edge preparations E: 0.02 0.03mm Honing E04: 0.04 0.05mm Honing T6: 0.1mm × 20~ Land | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0050
Name
Milling Indexable Inserts
FamilyName
RNGN 1207 FL
BrandName
Taegutec
