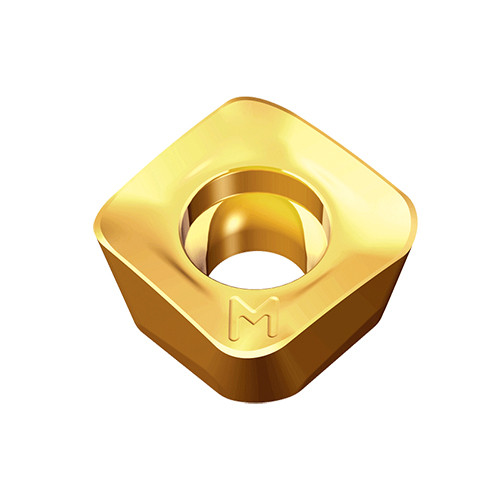

SBMT 090415R-M TT6080
Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm

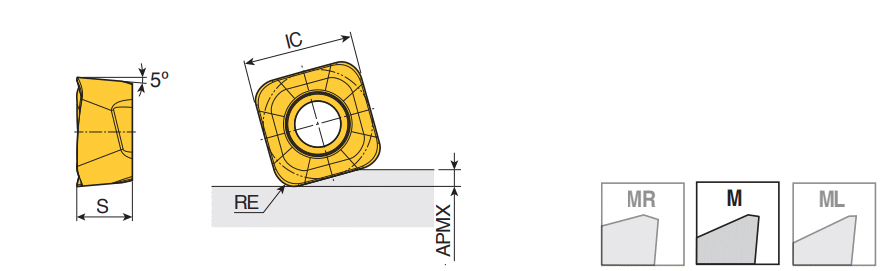

| Applicable Material | | Cast Iron | Hard Materials | | Grade | TT6080 |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 1.3 mm/tooth |
| Cutting Edge Length (L) | 9 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.5 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |
| Depth of Cut Maximum (APMX) | 1.2 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9 mm | Body Material | Carbide |
| Insert Thickness (S) | 4 mm | Unit | M |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm | FamilyName | SBMT 09-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0042
Name
Milling Indexable Inserts
FamilyName
SBMT 09-M
BrandName
Taegutec
