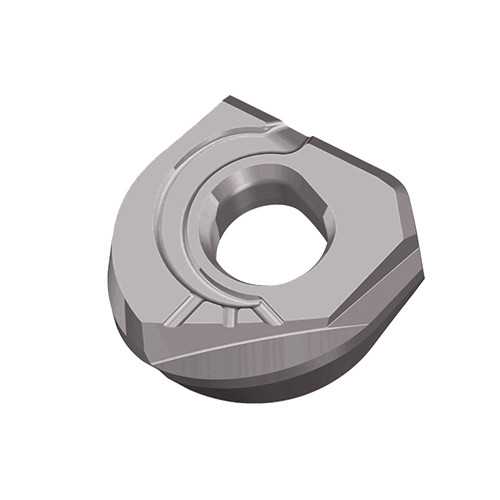

NFB 120-SM TT5515
Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | TT5515 |
| Application | | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth |
| Cutting Edge Length (L) | 12.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 6 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 4.8 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.2 mm | Unit | M |
| Coating | AlTiCrN |
Product Features
| Family Description | Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications | FamilyName | NFB-SM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0060
Name
Milling Indexable Inserts
FamilyName
NFB-SM
BrandName
Taegutec
