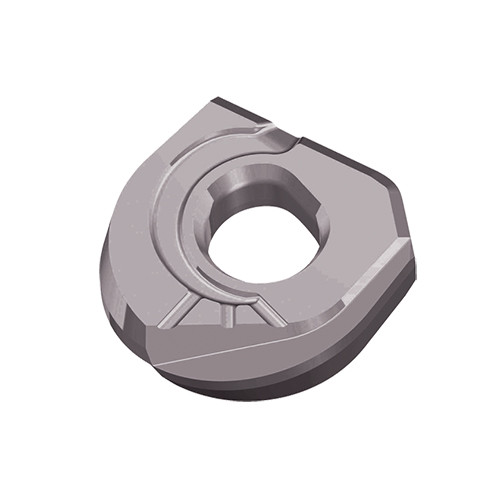

NFB 100-FM TT5515
Precision ball nose type inserts with straight cutting edge & coolant channel for finishing to semi-finishing machining.FM: High accurate R & general applications
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | TT5515 |
| Application | | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Corner Radius (RE) | 5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.3 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 10 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.7 mm | Body Material | Carbide |
| Coating | AlTiCrN | Unit | M |
Product Features
| Family Description | Precision ball nose type inserts with straight cutting edge & coolant channel for finishing to semi-finishing machining.FM: High accurate R & general applications | FamilyName | NFB-FM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0050
Name
Milling Indexable Inserts
FamilyName
NFB-FM
BrandName
Taegutec
