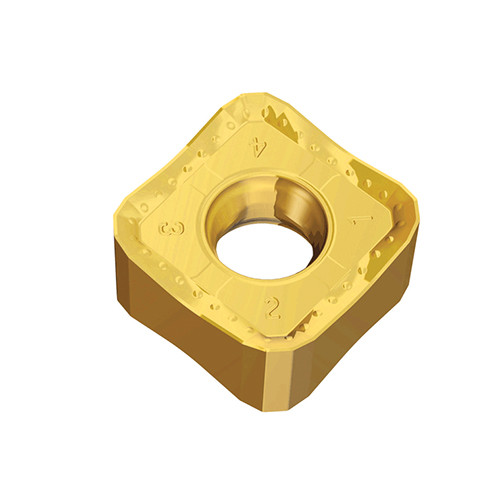

SNMX 1306 XTN TT9080
Double-sided square inserts with 8 cutting edges for 45° and 75° face mills with two chamfers

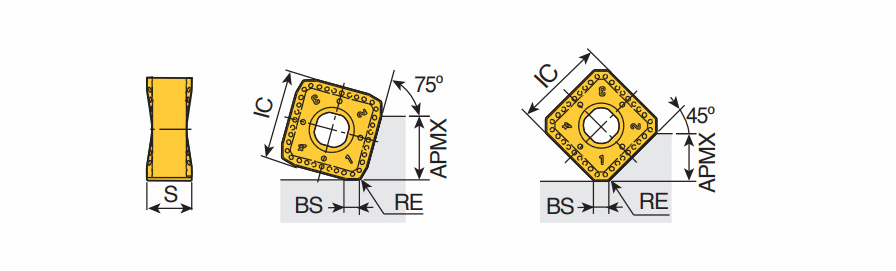

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Cutting Edge Length (L) | 6.35 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 6.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.5 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.9 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges for 45° and 75° face mills with two chamfers | FamilyName | SNMX 1306 XTN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0136
Name
Milling Indexable Inserts
FamilyName
SNMX 1306 XTN
BrandName
Taegutec
