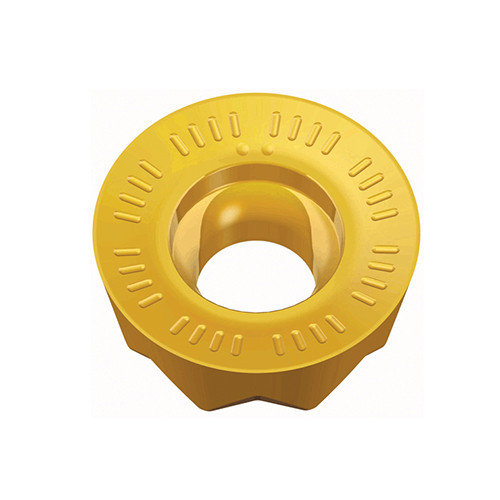

RYMX 0803-ML TT3540
Positive strong round inserts with sharp cutting edges for stainless steels and difficult-to-cut materials

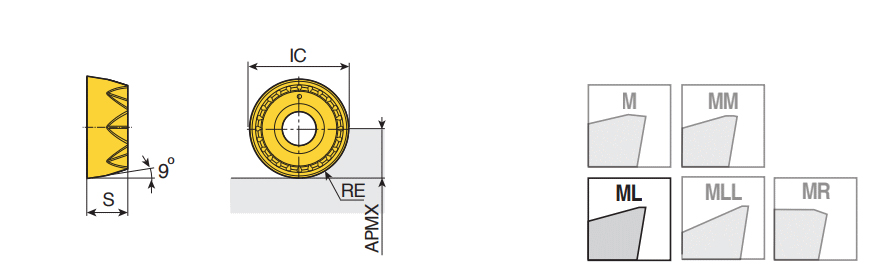

| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT3540 |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 4 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 4 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 3.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 8 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.2 mm | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Positive strong round inserts with sharp cutting edges for stainless steels and difficult-to-cut materials | FamilyName | RYMX 08/10/12/16/20-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0025
Name
Milling Indexable Inserts
FamilyName
RYMX 08/10/12/16/20-ML
BrandName
Taegutec
