BLMP 0904R-M TT9080

Name: BLMP 0904R-M TT9080
Brand: CHASE4FEED
SKU: TTK5616091
Price: 15.13 GBP
Availability: InStock

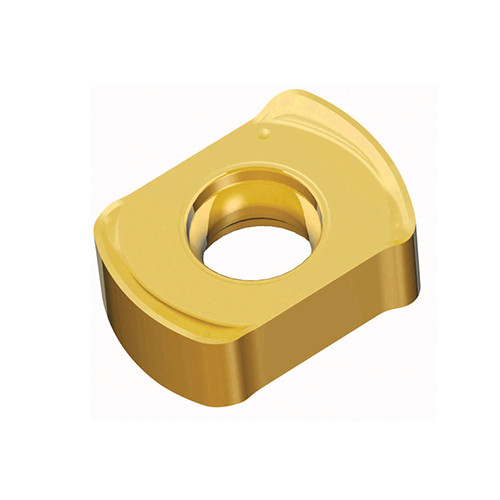

Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. depth of cut 1.5 mm

Item # TTK5616091

Brand: Taegutec

Mfr#: 5616091

Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|	Grade	TT9080
Application	\| Facing \| Helical Interpolation \| High Feed Milling \| Inserts \| Profiling \| Rampdown \|	Maximum Feed per Tooth (fz(max))	1.3 mm/tooth

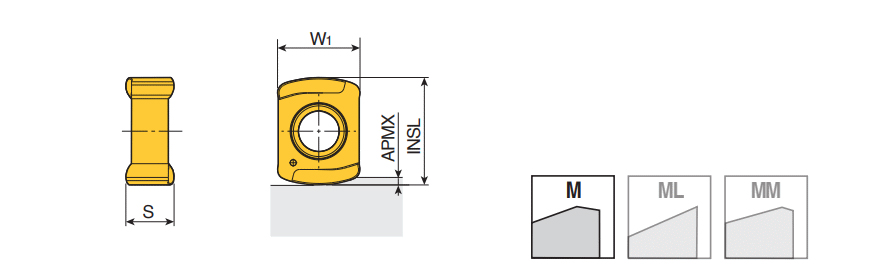

Cutting Edge Length (L)	11.94 mm	Cutting Edge Material	Carbide
Depth of Cut Maximum (APMX)	1.5 mm	Minimum Feed per Tooth (fz(min))	0.3 mm/tooth
Insert Width (W1)	9.2 mm	Measurement Type	Metric
Insert Thickness (S)	4.79 mm	Body Material	Carbide
Coating	TiAlN+TiN	Unit	M

Product Features

Family Description	Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. depth of cut 1.5 mm	FamilyName	BLMP 09-M
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0056

Name

Milling Indexable Inserts

FamilyName

BLMP 09-M

BrandName

Taegutec
