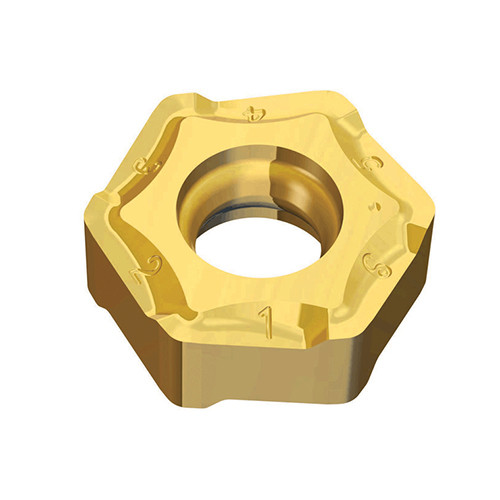

HNCX 050410R-MP TT9080

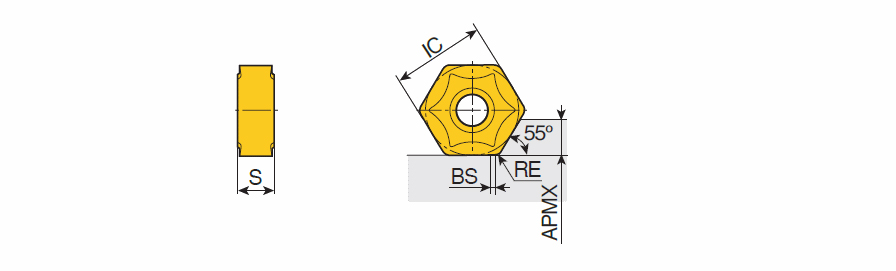

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.22 mm/tooth |
| Cutting Edge Length (L) | 5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 3.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 5 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Helical geometry with right hand cutting edge for reducing cutting load HEXA2MILL insert Maximum depth of cut 5mm on steel and cast iron. | FamilyName | HNCX 05-MP |
| COO | S.KOREA | BrandName | TaeguTec |
Shipping Info
Weight per item
0.0072
Name
Milling Indexable Inserts
FamilyName
HNCX 05-MP
BrandName
TaeguTec
