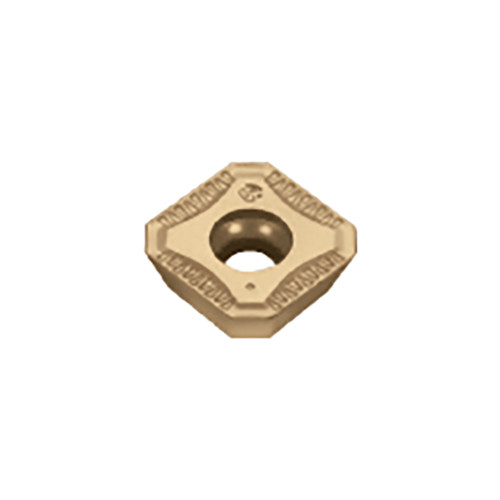

SEKT 12T3 AFTN-M TT9080
High positive square inserts with four cutting edges for general applications in 45 cutters
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

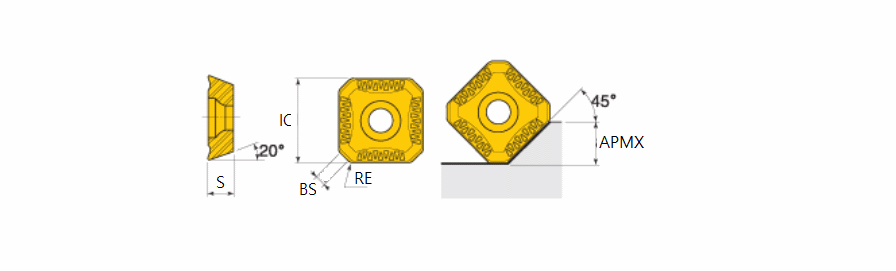

| Cutting Edge Length (L) | 6.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.1 mm | Minimum Feed per Tooth (fz(min)) | 0.075 mm/tooth |
| Depth of Cut Maximum (APMX) | 5.36 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.2 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.8 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | High positive square inserts with four cutting edges for general applications in 45 cutters | FamilyName | SEKT 12-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0075
Name
Milling Indexable Inserts
FamilyName
SEKT 12-M
BrandName
Taegutec
