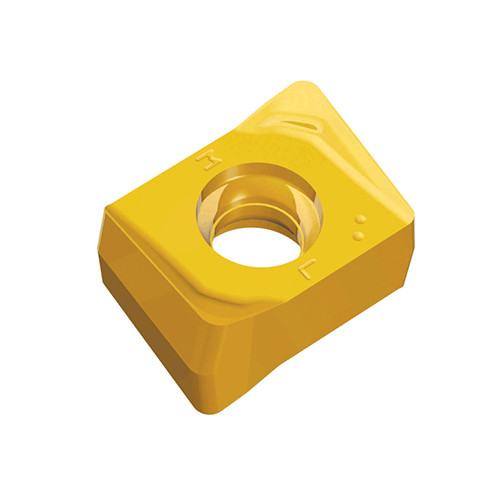

ZNHU 080-08-ML TT6080
Periphery ground slotting inserts with helical cutting edges and economical 4 cutting edges for medium-light applications.
| Applicable Material | | Cast Iron | Hard Materials | | Grade | TT6080 |
| Application | | Bottom Shouldering | Inserts | Side Slotting | Slitting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |

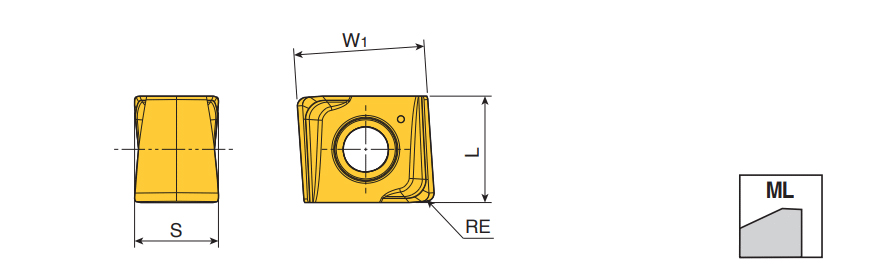

| Cutting Edge Length (L) | 7.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 0 mm | Measurement Type | Metric |
| Insert Width (W1) | 10.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.49 mm | Unit | M |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Periphery ground slotting inserts with helical cutting edges and economical 4 cutting edges for medium-light applications. | FamilyName | ZNHU-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0056
Name
Milling Indexable Inserts
FamilyName
ZNHU-ML
BrandName
Taegutec
