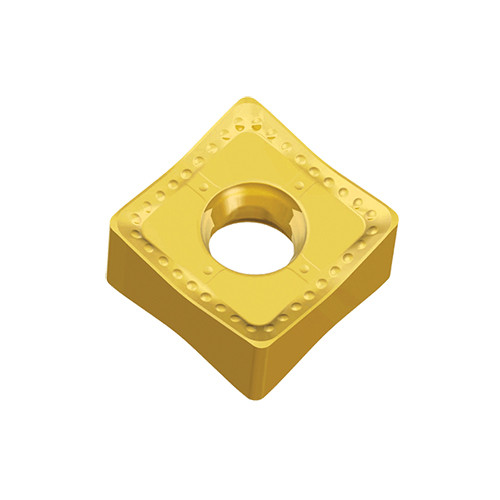

SNGX 1306 ZN-M TT8080
Double-sided square inserts with 8 cutting edges & corner R and wiper flat for 88° face mills

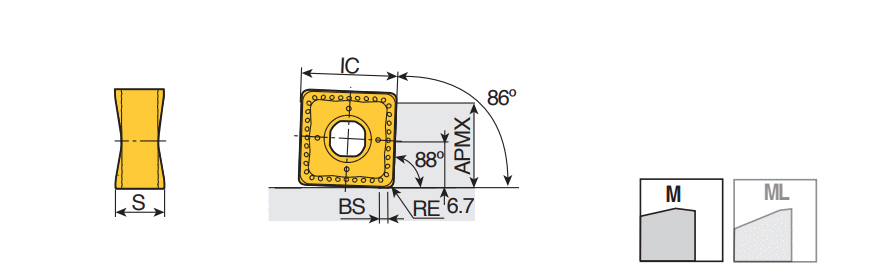

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT8080 |
| Application | | Facing | Inserts | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Cutting Edge Length (L) | 12 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.6 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.5 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.8 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges & corner R and wiper flat for 88° face mills | FamilyName | SNGX 1306 ZN-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0131
Name
Milling Indexable Inserts
FamilyName
SNGX 1306 ZN-M
BrandName
Taegutec
