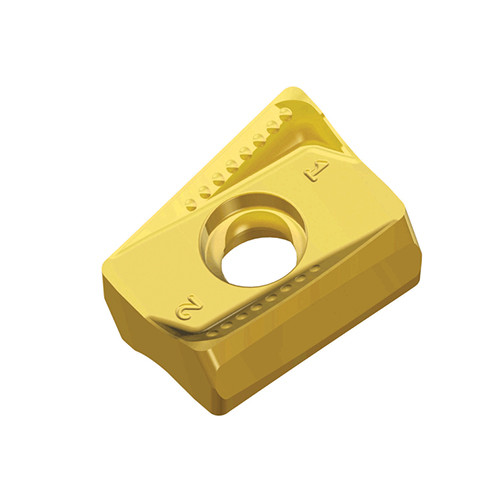

ANMX 160708R-M TT9080
Double sided inserts with 4 helical positive cutting edges for general machining and 90° shoulders

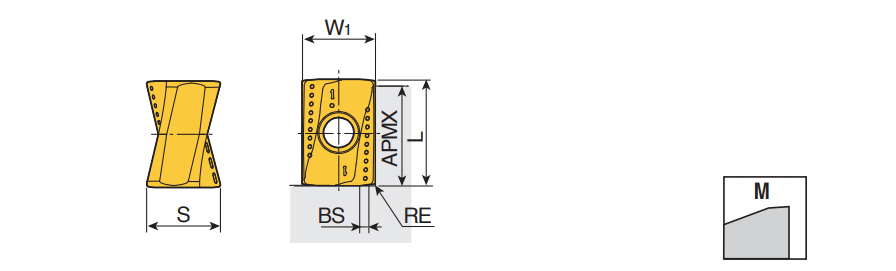

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 10.6 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
Product Features
| Family Description | Double sided inserts with 4 helical positive cutting edges for general machining and 90° shoulders | FamilyName | ANMX 11/16 R-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0156
Name
Milling Indexable Inserts
FamilyName
ANMX 11/16 R-M
BrandName
Taegutec
