SNGX 130608-M TT6080

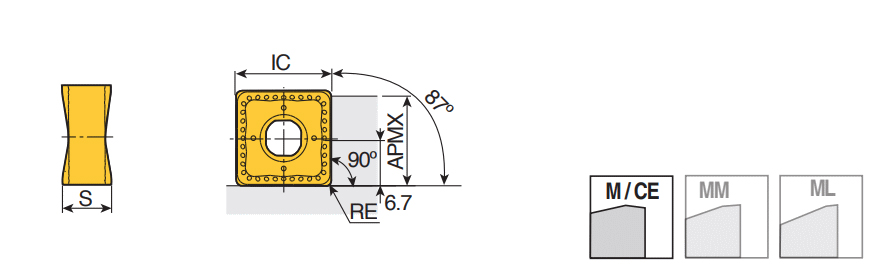

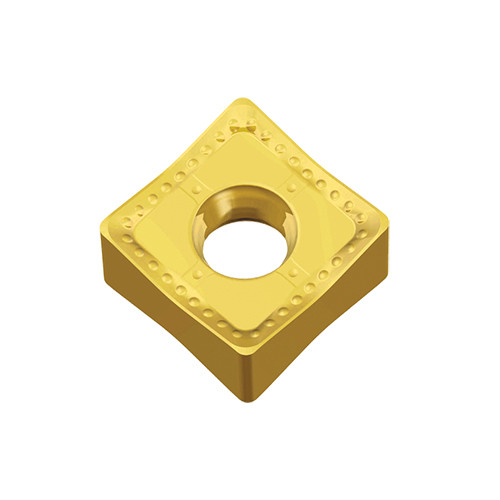

Double-sided ground square inserts with 8 cutting edges and various corner R for 90° and 88° face mills
| Applicable Material | | Cast Iron | Hard Materials | | Grade | TT6080 |
| Application | | Facing | Inserts | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Cutting Edge Length (L) | 12 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 10 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.5 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.8 mm | Unit | M |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Double-sided ground square inserts with 8 cutting edges and various corner R for 90° and 88° face mills | FamilyName | SNGX 1306-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0137
Name
Milling Indexable Inserts
FamilyName
SNGX 1306-M
BrandName
Taegutec
