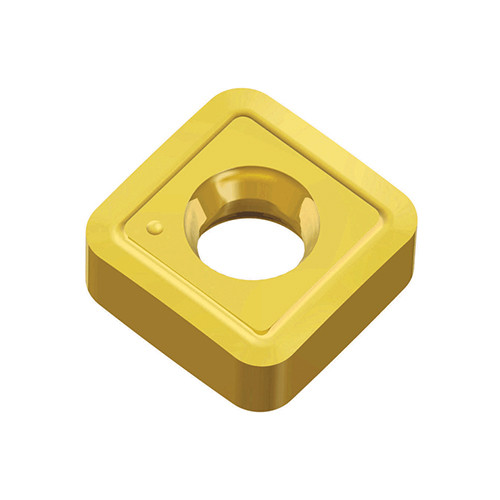

SNEX 1204-W TT6080
Precision ground wiper inserts of SN 12 with corner R and 8 cutting edges for steel and cast iron finish machining
| Applicable Material | | Cast Iron | Hard Materials | | Grade | TT6080 |
| Application | | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

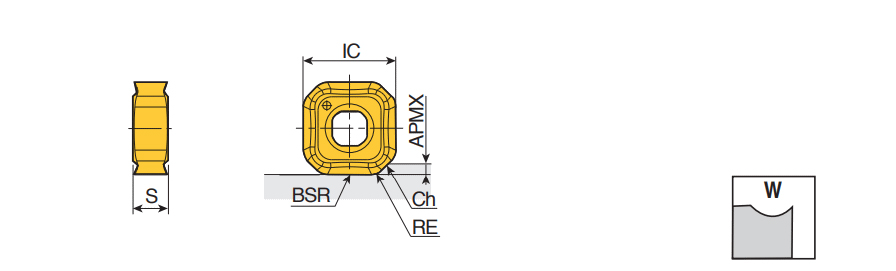

| Cutting Edge Length (L) | 1 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 0.8 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 4.76 mm | Unit | M |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Precision ground wiper inserts of SN 12 with corner R and 8 cutting edges for steel and cast iron finish machining | FamilyName | SNEX 12-W |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0100
Name
Milling Indexable Inserts
FamilyName
SNEX 12-W
BrandName
Taegutec
