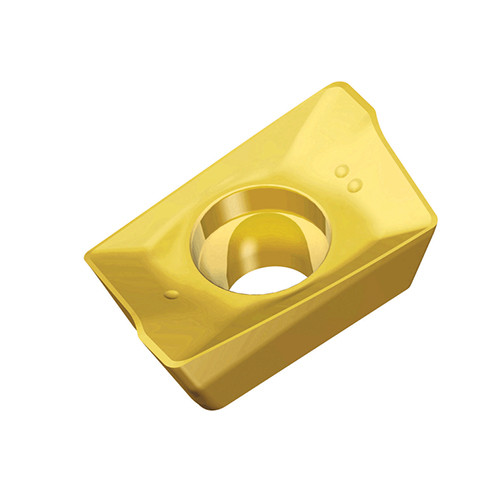

APKT 09T3 PER-EM TT7080
High positive inserts with two helical cutting edges for 90° shoulders & general machining in APKT 09
| Applicable Material | | Steel | Cast Iron | | Grade | TT7080 |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |

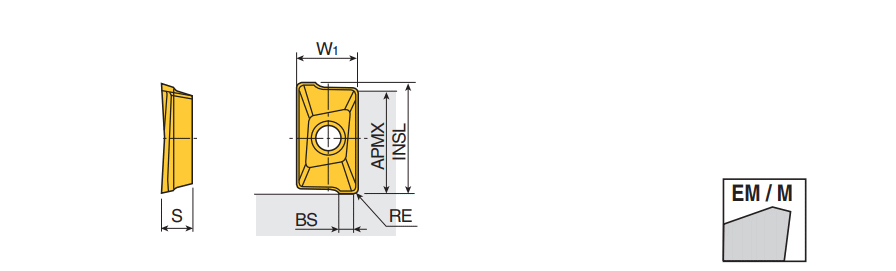

| Cutting Edge Length (L) | 10.55 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 7.5 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.8 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | High positive inserts with two helical cutting edges for 90° shoulders & general machining in APKT 09 | FamilyName | APKT 09T3 PER-EM |
| Remarks | AXMT 09 inserts will be phased out and replaced by APKT 09 after the stock depletion. | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0035
Name
Milling Indexable Inserts
FamilyName
APKT 09T3 PER-EM
BrandName
Taegutec
