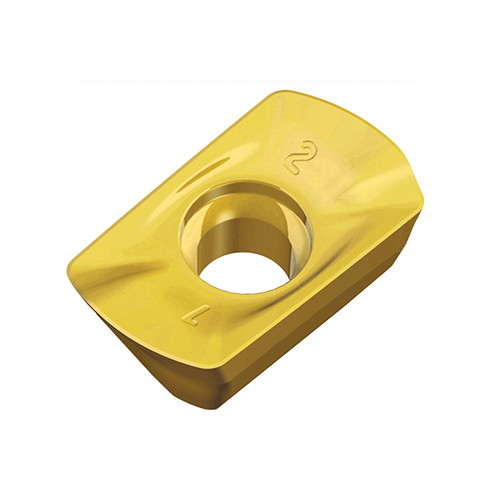

APKT 09T3R-HF TT9080
High feed inserts of APKT 09 with max. depth of cut 1.0 mm
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.8 mm/tooth |

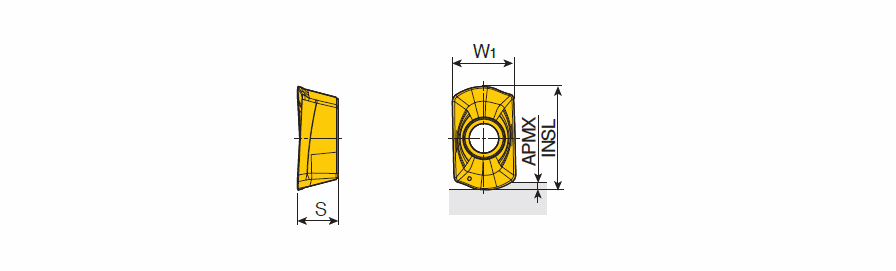

| Cutting Edge Length (L) | 10.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 5.25 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |
| Depth of Cut Maximum (APMX) | 1 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.9 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | High feed inserts of APKT 09 with max. depth of cut 1.0 mm | FamilyName | APKT 09T3R-HF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0030
Name
Milling Indexable Inserts
FamilyName
APKT 09T3R-HF
BrandName
Taegutec
