SNMX 1607 ANTN-M TT9080
Heavy duty double-sided square inserts with 8 cutting edges for steel and cast iron in 45° face mills

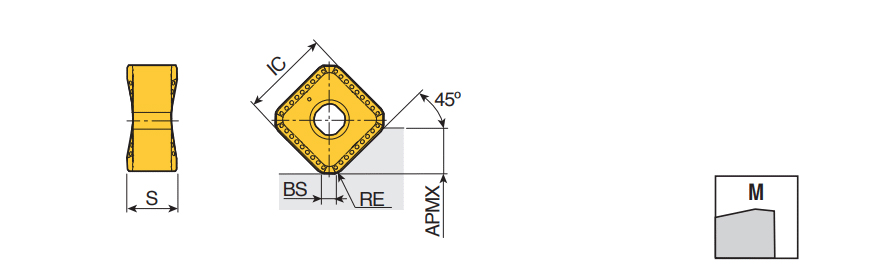

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 0 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.125 mm/tooth |
| Depth of Cut Maximum (APMX) | 7.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 16.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 7.8 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Heavy duty double-sided square inserts with 8 cutting edges for steel and cast iron in 45° face mills | FamilyName | SNMX 1607 ANTN-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0240
Name
Milling Indexable Inserts
FamilyName
SNMX 1607 ANTN-M
BrandName
Taegutec
