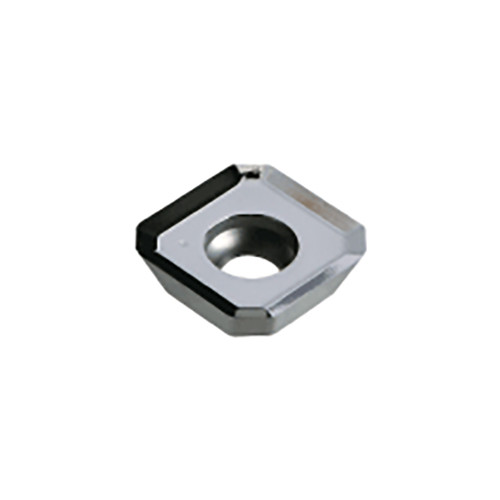

SEHT 12T3 AFN-AL K10
High positive ground square inserts with sharp cutting edges & polished rake face for aluminum machining in 45° cutters

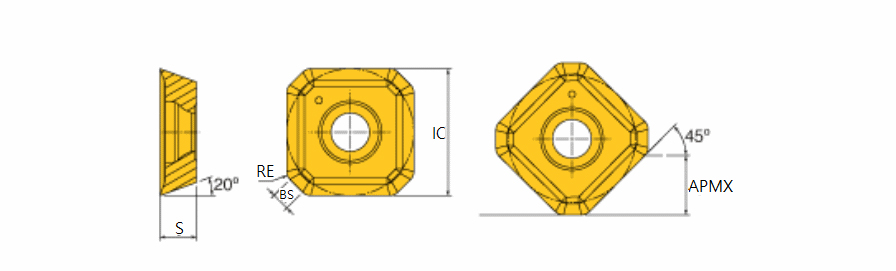

| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | K10 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Cutting Edge Length (L) | 5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.2 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.2 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.8 mm | Unit | M |
| Coating | Uncoated |
Product Features
| Family Description | High positive ground square inserts with sharp cutting edges & polished rake face for aluminum machining in 45° cutters | FamilyName | SEHT 12.. AFN-AL |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0067
Name
Milling Indexable Inserts
FamilyName
SEHT 12.. AFN-AL
BrandName
Taegutec
