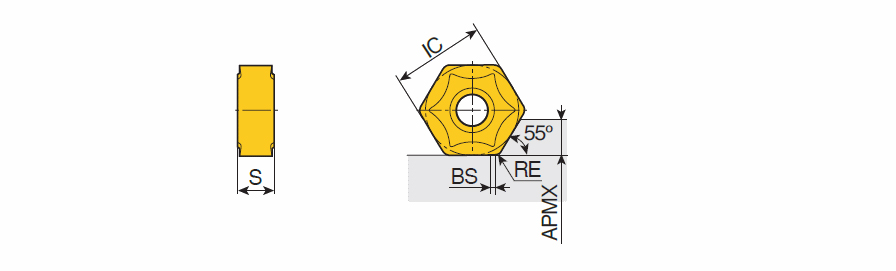

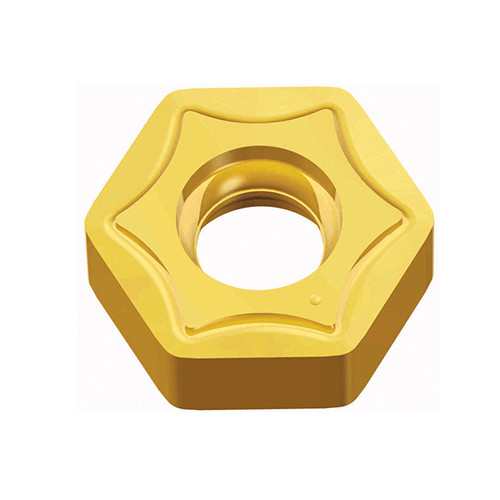

HNCX 050410-MM TT9030
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9030 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Cutting Edge Length (L) | 5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 5 mm | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Screw on type size HEXA2MILL insert General type | FamilyName | HNCX 05-MM |
| COO | S.KOREA | BrandName | TaeguTec |
Shipping Info
Weight per item
0.0084
Name
Milling Indexable Inserts
FamilyName
HNCX 05-MM
BrandName
TaeguTec
