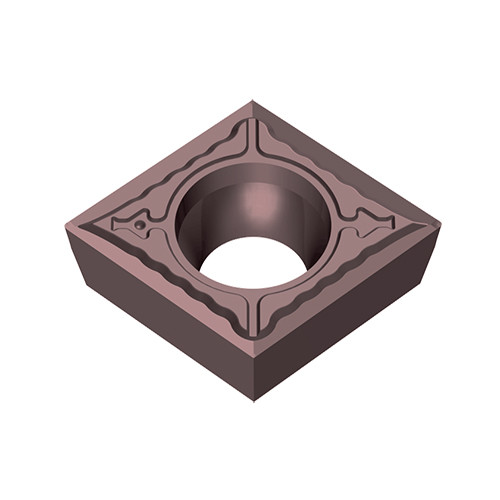

CCGT 09T304M SH-F TT4410
Positive ground 80° rhombic inserts with sharp cutting ed ge for high depth machining of small parts on swiss type automatic lathes
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT4410 |
| Application | | Ext 90° App 80° Diamond | Ext 95° App 80°Diamond | Ext 95° App Sleeve 80° Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.7 mm |

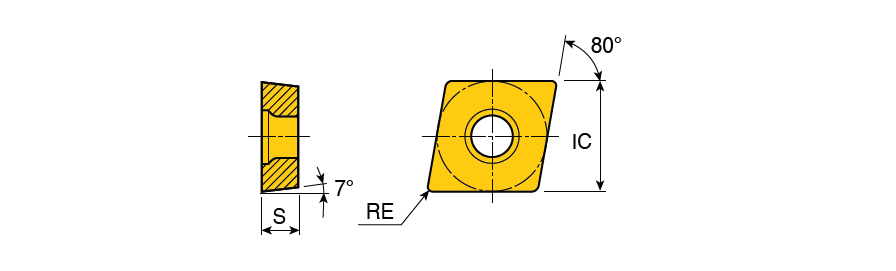

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 9.7 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.17 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Multi AlTiCrN | Unit | M |
Product Features
| Family Description | Positive ground 80° rhombic inserts with sharp cutting ed ge for high depth machining of small parts on swiss type automatic lathes | FamilyName | CCGT-SH-F |
| Remarks | M: Corner radius minus tolerance (ex : 02M is 0.18) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0022
Name
Turning Indexable Inserts
FamilyName
CCGT-SH-F
BrandName
Taegutec
